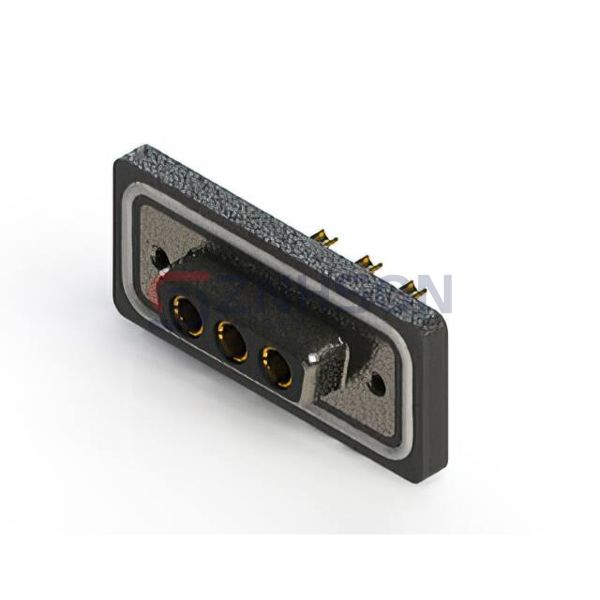

628W3W3-122-1NA
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 3P PNL MNT
$13.24
Available to order
Reference Price (USD)
1+
$13.24470
500+
$13.112253
1000+
$12.979806
1500+
$12.847359
2000+
$12.714912
2500+
$12.582465
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc. presents the 628W3W3-122-1NA D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 628W3W3-122-1NA is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 3 (Power)
- Number of Rows: 1
- Mounting Type: Panel Mount
- Shell Size, Connector Layout: 2 (DA, A) - 3W3
- Contact Type: Power
- Flange Feature: Housing/Shell (M3)
- Termination: Solder Cup
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 5.00µin (0.127µm)
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 10A
- Backset Spacing: -
- Features: Shielded
Related Products
EDAC Inc.
629-5W1-650-3N6
EDAC Inc.
630-13W3240-2N3
Amphenol ICC (Commercial Products)

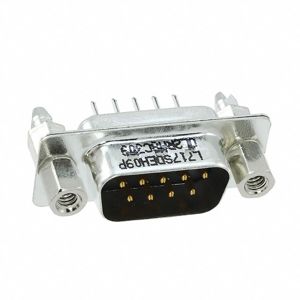

L717SDEH09POL2RM8C309
EDAC Inc.

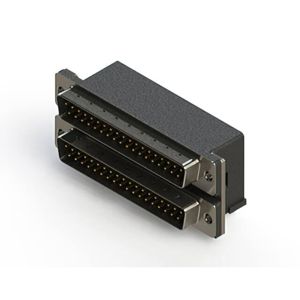

661-037-664-004
EDAC Inc.

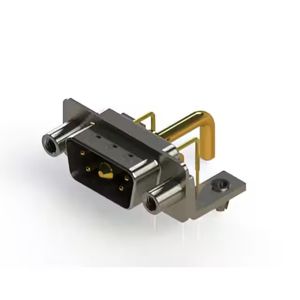

629-5W1-250-2N5
EDAC Inc.

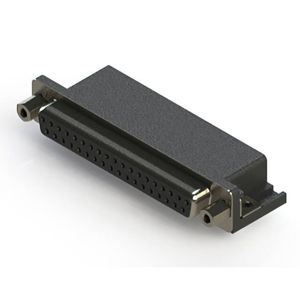

626-037-362-012
EDAC Inc.

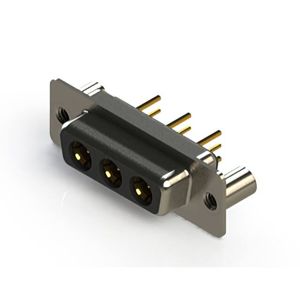

628-3W3-224-5T3
EDAC Inc.

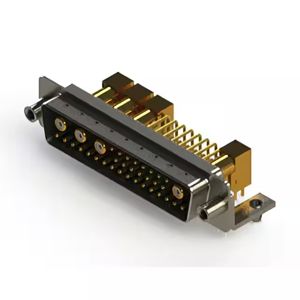

629-36W4640-5TD
EDAC Inc.

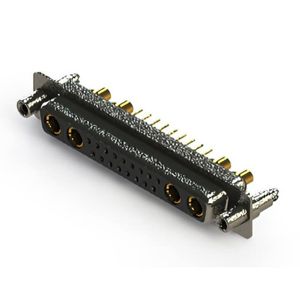

628-21W4624-3T6
