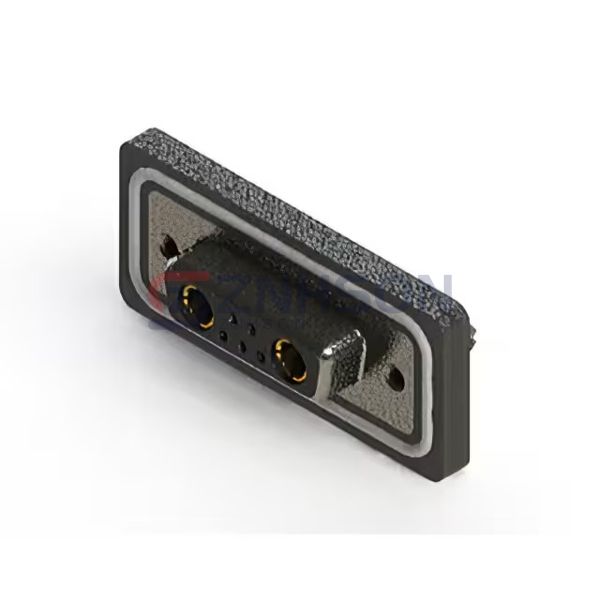

628W7W2-124-2ND
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 7P PNL MNT SLDR
$13.17
Available to order
Reference Price (USD)
1+
$13.17330
500+
$13.041567
1000+
$12.909834
1500+
$12.778101
2000+
$12.646368
2500+
$12.514635
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 628W7W2-124-2ND redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 628W7W2-124-2ND is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 7 (5 + 2 Power)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole
- Shell Size, Connector Layout: 2 (DA, A) - 7W2
- Contact Type: Signal and Power
- Flange Feature: Board Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 5.00µin (0.127µm)
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 20A
- Backset Spacing: -
- Features: Board Lock, Shielded
Related Products
EDAC Inc.
628-21W1224-5TA
EDAC Inc.

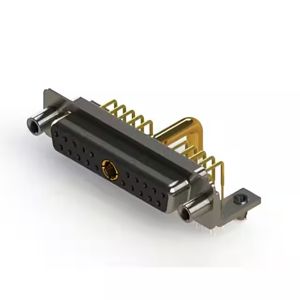

630-21W1250-4ND
EDAC Inc.

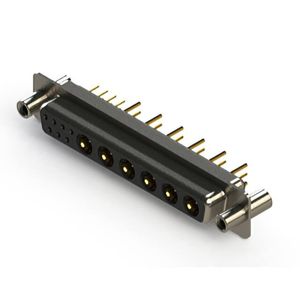

628-13W6624-7T4
EDAC Inc.

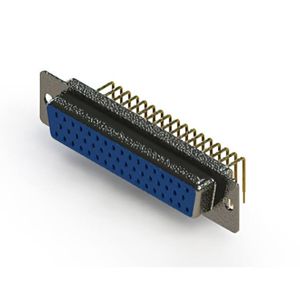

622-M50-260-LN1
EDAC Inc.

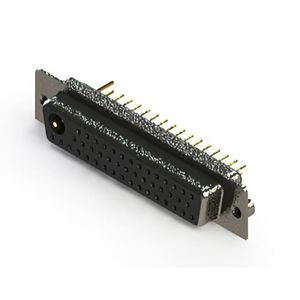

628-47W1624-5NA
EDAC Inc.

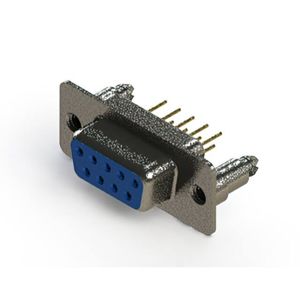

628-M09-621-LT5
PEI-Genesis
DD44S32000S/AA
HARTING

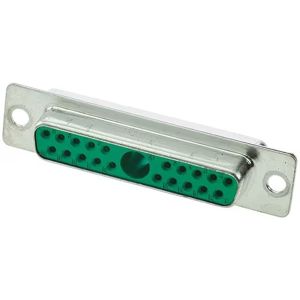

09693015211
Positronic

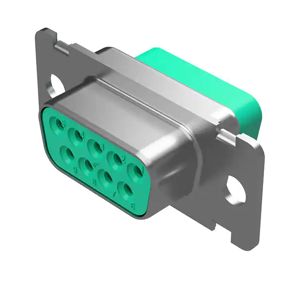

RD15S100EX
