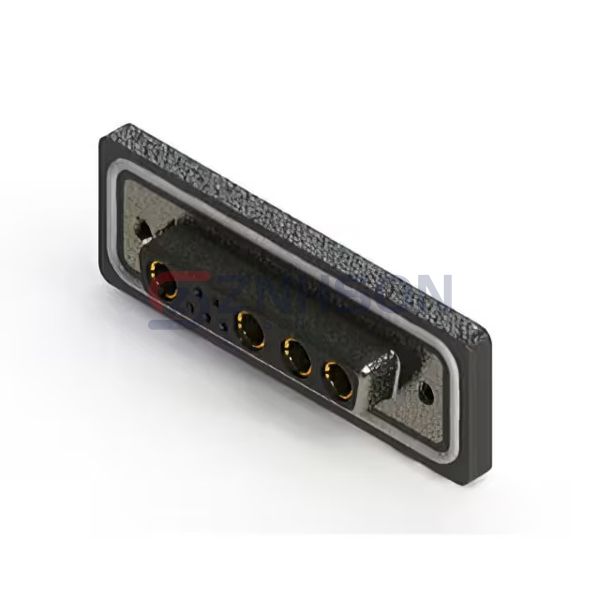

628W9W4-124-2N2
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 9P PNL MNT SLDR
$15.70
Available to order
Reference Price (USD)
1+
$15.70280
500+
$15.545772
1000+
$15.388744
1500+
$15.231716
2000+
$15.074688
2500+
$14.91766
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 628W9W4-124-2N2 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 628W9W4-124-2N2 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 9 (5 + 4 Power)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole
- Shell Size, Connector Layout: 3 (DB, B) - 9W4
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 5.00µin (0.127µm)
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 20A
- Backset Spacing: -
- Features: Shielded
