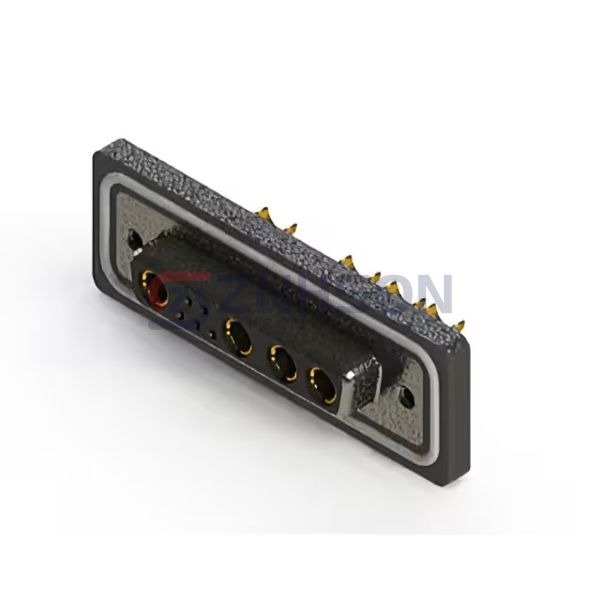

628W9W4-222-4N2
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 9P PNL MNT
$15.50
Available to order
Reference Price (USD)
1+
$15.49800
500+
$15.34302
1000+
$15.18804
1500+
$15.03306
2000+
$14.87808
2500+
$14.7231
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 628W9W4-222-4N2 redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 628W9W4-222-4N2 is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 9 (5 + 4 Power)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole
- Shell Size, Connector Layout: 3 (DB, B) - 9W4
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder Cup
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 40A
- Backset Spacing: -
- Features: Shielded
Related Products
EDAC Inc.
628-25W3224-5TD
EDAC Inc.
628-M25-323-WT1
EDAC Inc.
622-015-668-555
Positronic
DD26S2S50V5X/AA
EDAC Inc.
630-21W1640-7T2
EDAC Inc.
628-3W3-624-2TA
EDAC Inc.

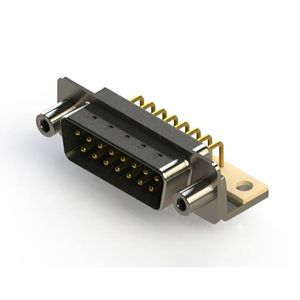

621-M15-360-GT6
Positronic

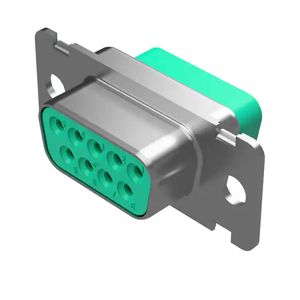

RD50S10ANT2S
EDAC Inc.

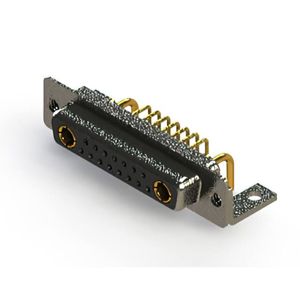

630-17W2240-1TC
