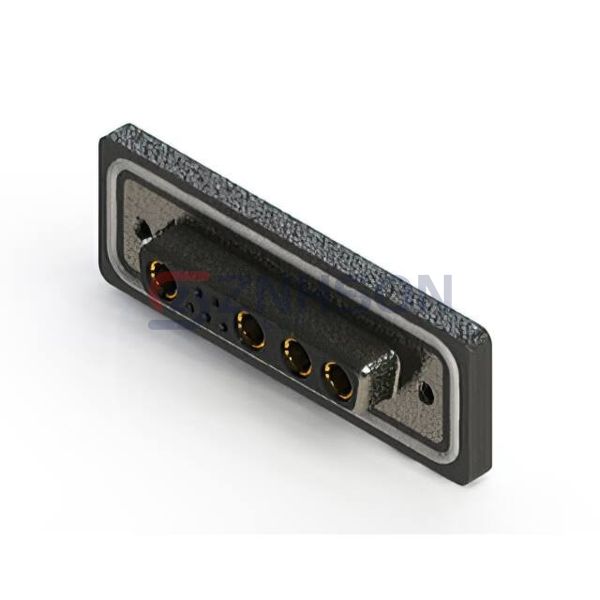

628W9W4-624-4N2
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 9P PNL MNT SLDR
$25.47
Available to order
Reference Price (USD)
1+
$25.47140
500+
$25.216686
1000+
$24.961972
1500+
$24.707258
2000+
$24.452544
2500+
$24.19783
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your connectivity solutions with EDAC Inc.'s 628W9W4-624-4N2 D-Sub connectors - the industry standard for robust interconnections. These connectors in our Interconnects category feature gold-plated contacts for optimal conductivity and corrosion resistance. The 628W9W4-624-4N2 series includes both standard and high-density configurations suitable for military, aerospace, and transportation applications. Engineers trust these D-Subs for avionics systems, railway signaling equipment, and naval electronics due to their MIL-DTL-24308 compliance. Each connector undergoes rigorous testing for insertion durability (500+ cycles) and environmental resistance, making them ideal for harsh operating conditions.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 9 (5 + 4 Power)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole
- Shell Size, Connector Layout: 3 (DB, B) - 9W4
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 40A
- Backset Spacing: -
- Features: Shielded
Related Products
EDAC Inc.
628-037-620-248
PEI-Genesis
DD15S20JT20
EDAC Inc.
629-36W4240-1N3
EDAC Inc.
630-25W3650-2T5
PEI-Genesis
DD26S1S5000/AA
EDAC Inc.
628-050-622-248
EDAC Inc.
628-47W1624-5NE
EDAC Inc.
630-W09-240-015

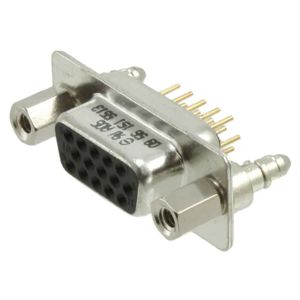

HARTING
