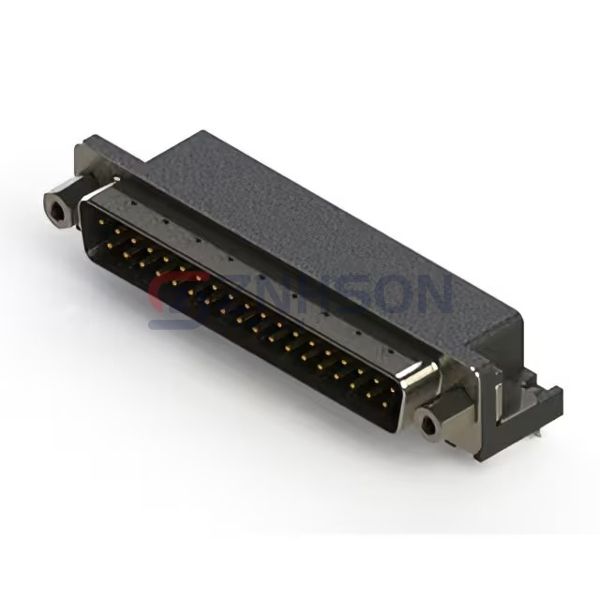

629-037-640-533
EDAC Inc.
EDAC Inc.
629 SERIES RIGHT ANGLE D-SUB PLU
$4.92
Available to order
Reference Price (USD)
1+
$4.92072
500+
$4.8715128
1000+
$4.8223056
1500+
$4.7730984
2000+
$4.7238912
2500+
$4.674684
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 629-037-640-533 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 629-037-640-533 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Plug, Male Pins
- Number of Positions: 37
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Shell Size, Connector Layout: 4 (DC, C)
- Contact Type: Signal
- Flange Feature: Mating Side, Female Screwlock (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.409" (10.40mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
