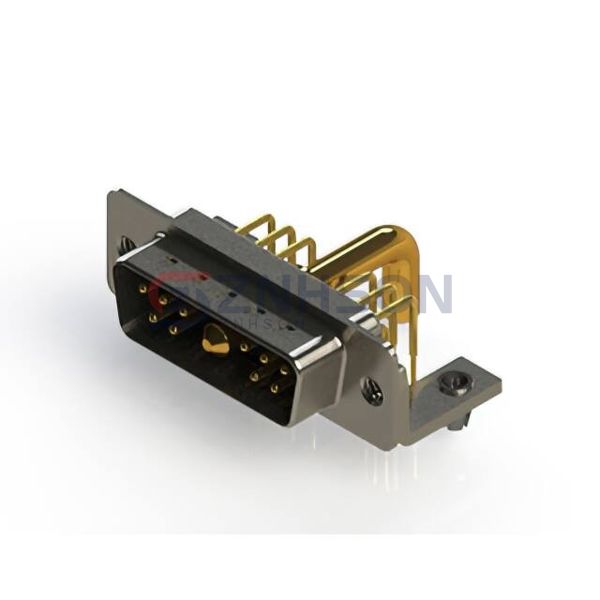

629-11W1250-4T3
EDAC Inc.
EDAC Inc.
CONN D-SUB PLUG 11POS R/A SLDR
$4.70
Available to order
Reference Price (USD)
1+
$4.70458
500+
$4.6575342
1000+
$4.6104884
1500+
$4.5634426
2000+
$4.5163968
2500+
$4.469351
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 629-11W1250-4T3 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 629-11W1250-4T3 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 11 (10 + 1 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A) - 11C1, 11W1
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 40A
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets
Related Products
EDAC Inc.
630W13W3240-2NA
EDAC Inc.
638-078-331-058
EDAC Inc.
629-5W1-240-2N3
EDAC Inc.
628-21W1624-5NA
EDAC Inc.
627-M50-222-WT1
EDAC Inc.
629-21W4640-7N2
PEI-Genesis
DD44S10WT2S/AA
EDAC Inc.
627-5W5-624-1T6
EDAC Inc.

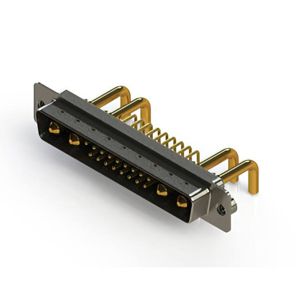

629-21W4650-2TA
