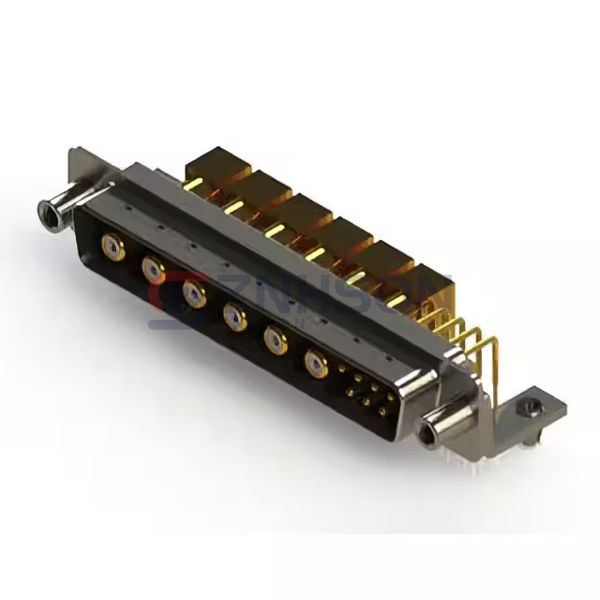

629-13W6640-5T5
EDAC Inc.
EDAC Inc.
CONN D-SUB PLUG 13POS R/A SLDR
$24.42
Available to order
Reference Price (USD)
1+
$24.42180
500+
$24.177582
1000+
$23.933364
1500+
$23.689146
2000+
$23.444928
2500+
$23.20071
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc. presents the 629-13W6640-5T5 D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 629-13W6640-5T5 is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 13 (7 + 6 Coax)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 4 (DC, C) - 13W6
- Contact Type: Coax and Signal
- Flange Feature: Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets
Related Products
EDAC Inc.
629-3W3-250-1N6
EDAC Inc.
621-015-668-511
EDAC Inc.
627-015-271-276
PEI-Genesis
DD15S3200V30
EDAC Inc.
630-17W5250-3N6
EDAC Inc.
621-M50-360-WT6
Positronic
DD44S1S0V50
EDAC Inc.

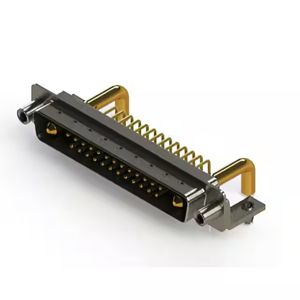

629-27W2250-4TD
EDAC Inc.

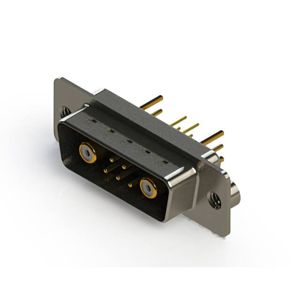

627-7W2-624-5N2
