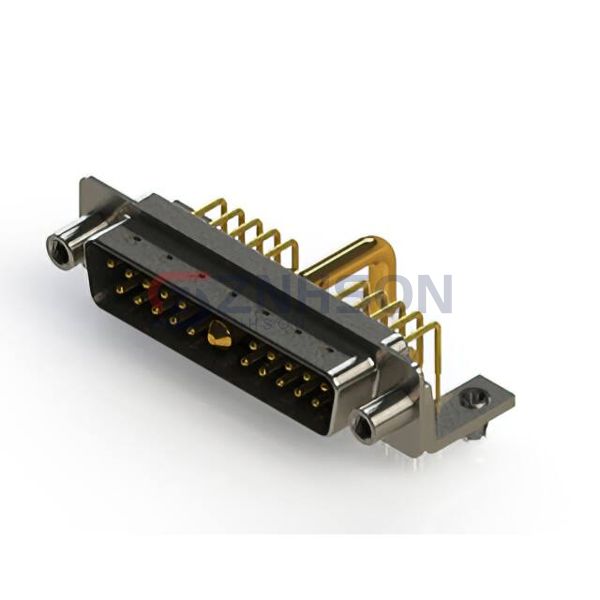

629-21W1650-3N5
EDAC Inc.
EDAC Inc.
CONN D-SUB PLUG 21POS R/A SLDR
$18.98
Available to order
Reference Price (USD)
1+
$18.98436
500+
$18.7945164
1000+
$18.6046728
1500+
$18.4148292
2000+
$18.2249856
2500+
$18.035142
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 629-21W1650-3N5 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 629-21W1650-3N5 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 21 (20 + 1 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B) - 21W1
- Contact Type: Signal and Power
- Flange Feature: Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 30A
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets
Related Products
EDAC Inc.
628-5W5-622-7TA
Positronic
RD25S1S50V5X/AA
EDAC Inc.
629-13W3240-2N6
EDAC Inc.
628-009-226-016
EDAC Inc.

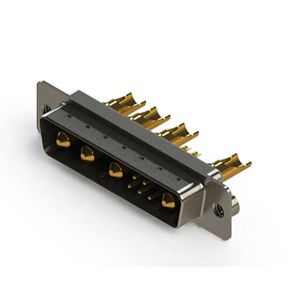

627-9W4-622-3N2
PEI-Genesis

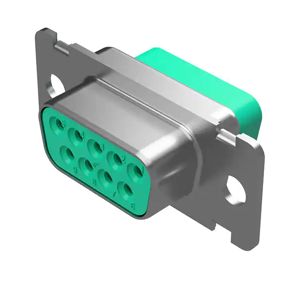

RD9M100V30/AA
EDAC Inc.

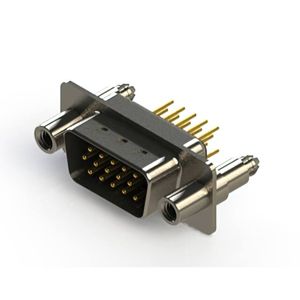

637-M15-230-BN6
EDAC Inc.

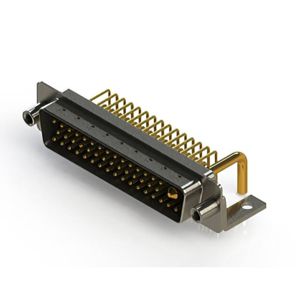

629-47W1250-2T6
