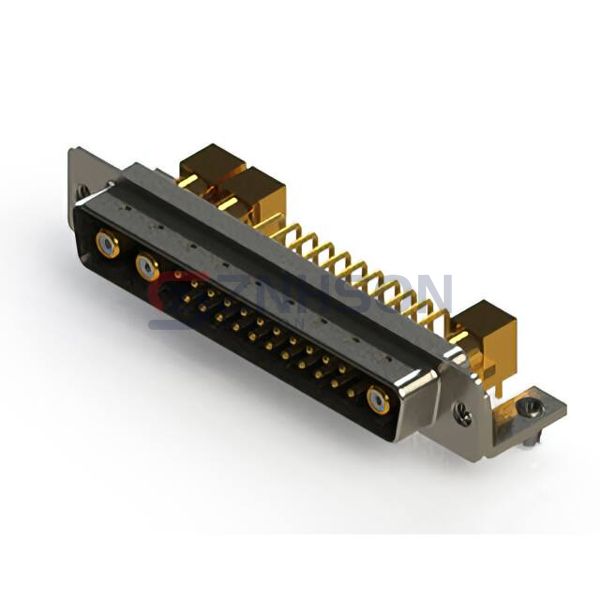

629-25W3240-5TB
EDAC Inc.
EDAC Inc.
CONN D-SUB PLUG 25POS R/A SLDR
$9.30
Available to order
Reference Price (USD)
1+
$9.29604
500+
$9.2030796
1000+
$9.1101192
1500+
$9.0171588
2000+
$8.9241984
2500+
$8.831238
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 629-25W3240-5TB redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 629-25W3240-5TB is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 25 (22 + 3 Coax)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 4 (DC, C) - 25W3
- Contact Type: Coax and Signal
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets
Related Products
EDAC Inc.
621-M25-360-GN4
EDAC Inc.
627-2WK2224-7NE
EDAC Inc.
627-17W2222-1T1
EDAC Inc.
628-037-651-257
EDAC Inc.
629-36W4640-3TA
EDAC Inc.
629-25W3250-2T6
EDAC Inc.
627-015-681-277
EDAC Inc.

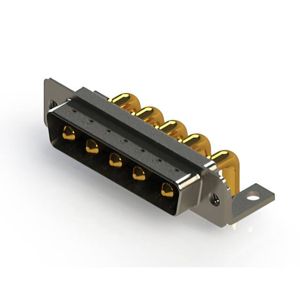

629-5W5-240-4N4
EDAC Inc.

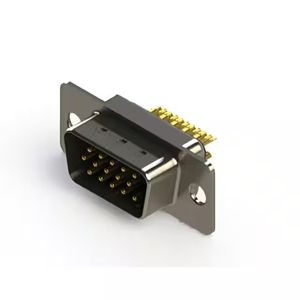

637-M15-232-BT1
