629-36W4640-1T1
EDAC Inc.
EDAC Inc.

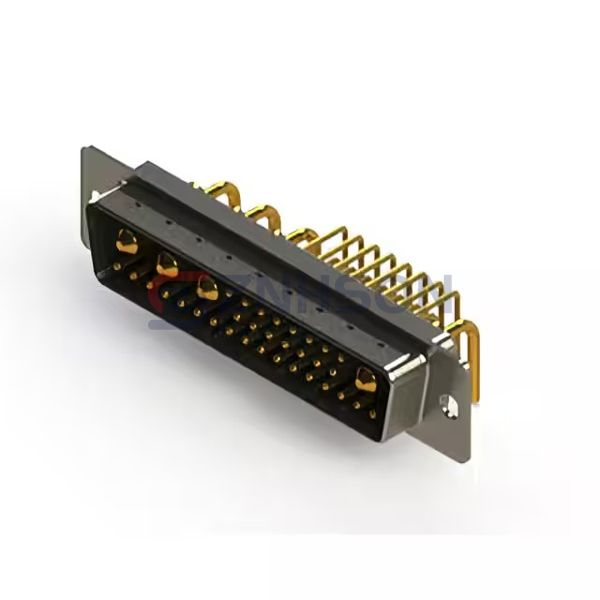

CONN D-SUB PLUG 36POS R/A SLDR
$29.78
Available to order
Reference Price (USD)
1+
$29.77884
500+
$29.4810516
1000+
$29.1832632
1500+
$28.8854748
2000+
$28.5876864
2500+
$28.289898
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the EDAC Inc. 629-36W4640-1T1 D-Sub connector series delivers unmatched performance in the Interconnects market. Featuring nickel-plated shells with keying options to prevent mis-mating, these connectors support data rates up to 1Gbps. The 629-36W4640-1T1 stands out in our catalog with its combination of 75 and 50 impedance variants for RF applications. Primary deployment scenarios include satellite communications gear, radar systems, and military encryption devices. These connectors are also widely specified in automotive diagnostics tools and industrial robotics where vibration-proof connections are essential.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 36 (32 + 4 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 5 (DD, D) - 36W4
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (Unthreaded)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 10A
- Backset Spacing: 0.370" (9.40mm)
- Features: Grounding Indents, Shielded
