629-5W1-240-4N1
EDAC Inc.
EDAC Inc.

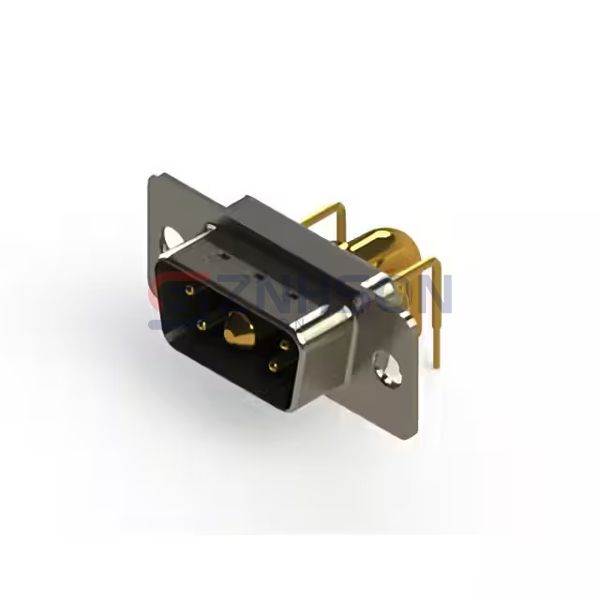

CONN D-SUB PLUG 5POS R/A SLDR
$5.37
Available to order
Reference Price (USD)
1+
$5.36660
500+
$5.312934
1000+
$5.259268
1500+
$5.205602
2000+
$5.151936
2500+
$5.09827
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 629-5W1-240-4N1 redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 629-5W1-240-4N1 is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 5 (4 + 1 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 1 (DE, E) - 5W1
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (Unthreaded)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 40A
- Backset Spacing: 0.370" (9.40mm)
- Features: Grounding Indents, Shielded
