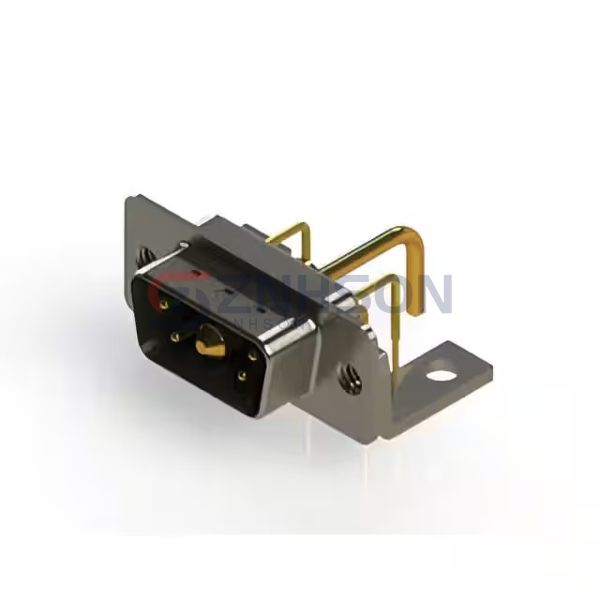

629-5W1-650-1N4
EDAC Inc.
EDAC Inc.
CONN D-SUB PLUG 5POS R/A SLDR
$9.74
Available to order
Reference Price (USD)
1+
$9.73740
500+
$9.640026
1000+
$9.542652
1500+
$9.445278
2000+
$9.347904
2500+
$9.25053
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the EDAC Inc. 629-5W1-650-1N4 D-Sub connector series delivers unmatched performance in the Interconnects market. Featuring nickel-plated shells with keying options to prevent mis-mating, these connectors support data rates up to 1Gbps. The 629-5W1-650-1N4 stands out in our catalog with its combination of 75 and 50 impedance variants for RF applications. Primary deployment scenarios include satellite communications gear, radar systems, and military encryption devices. These connectors are also widely specified in automotive diagnostics tools and industrial robotics where vibration-proof connections are essential.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 5 (4 + 1 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 1 (DE, E) - 5W1
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 10A
- Backset Spacing: 0.370" (9.40mm)
- Features: Grounding Indents, Mounting Brackets
