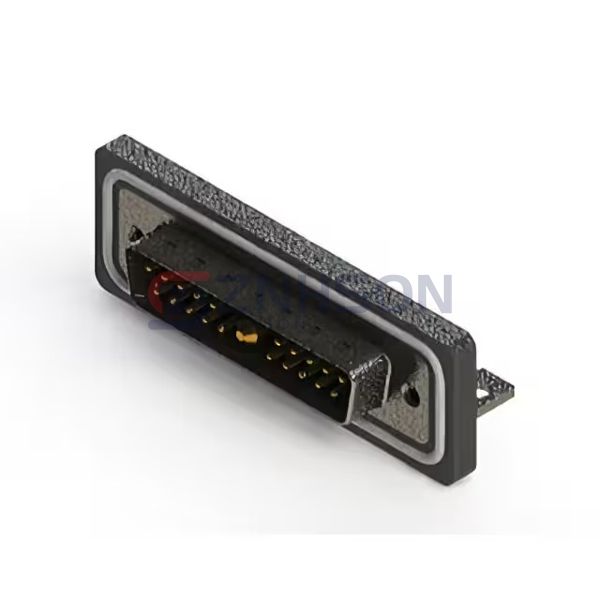

629W21W1240-2N4
EDAC Inc.
EDAC Inc.
CONN D-SUB PLUG 21POS R/A SLDR
$17.71
Available to order
Reference Price (USD)
1+
$17.70670
500+
$17.529633
1000+
$17.352566
1500+
$17.175499
2000+
$16.998432
2500+
$16.821365
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 629W21W1240-2N4 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 629W21W1240-2N4 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 21 (20 + 1 Power)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B) - 21W1
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 20A
- Backset Spacing: -
- Features: Grounding Indents, Mounting Brackets, Shielded
Related Products
EDAC Inc.
662-015-364-056
Amphenol ICC (FCI)
D09P91C4GV00LF
EDAC Inc.
633-015-263-055
HARTING
09654626816
EDAC Inc.
628-7W2-624-4TC
EDAC Inc.
628-3W3-224-7T6
PEI-Genesis
DD62S32S0T20
EDAC Inc.
634-M62-263-BN5
Amphenol ICC (FCI)

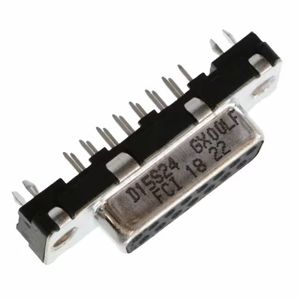

D15S24B4GX00LF
