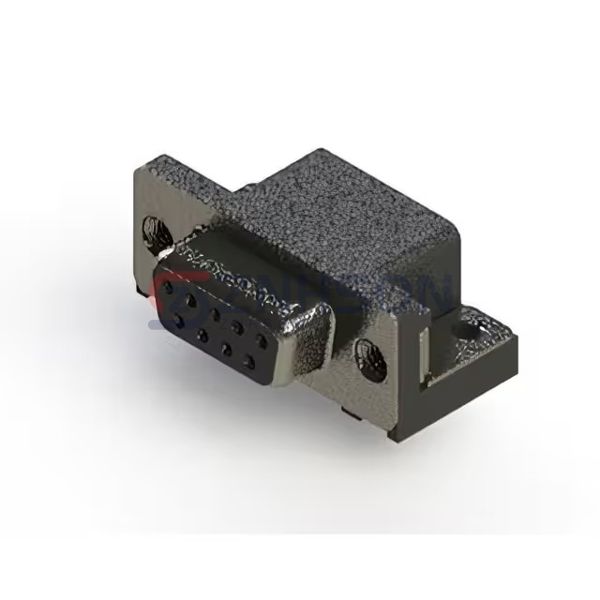

630-009-240-515
EDAC Inc.
EDAC Inc.
630 SERIES RIGHT ANGLE D-SUB REC
$1.14
Available to order
Reference Price (USD)
1+
$1.13625
500+
$1.1248875
1000+
$1.113525
1500+
$1.1021625
2000+
$1.0908
2500+
$1.0794375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 630-009-240-515 redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 630-009-240-515 is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 9
- Number of Rows: 2
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 1 (DE, E)
- Contact Type: Signal
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.409" (10.40mm)
- Features: Mounting Brackets, Shielded
Related Products
EDAC Inc.
630-M37-640-BT1
Positronic
RD15M10GEZ
EDAC Inc.
629-21W1240-5T4
EDAC Inc.
629-2W2-250-1TA
EDAC Inc.
630-M15-640-WT5
EDAC Inc.
622-M15-660-LN4
EDAC Inc.
630-24W7640-3NC
EDAC Inc.

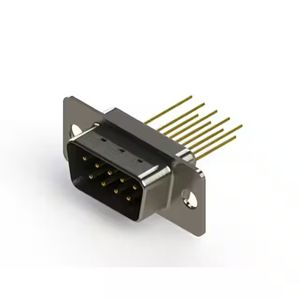

627-M09-223-BT1
EDAC Inc.

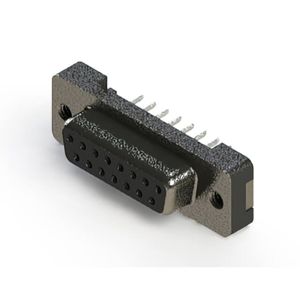

628-015-224-212
