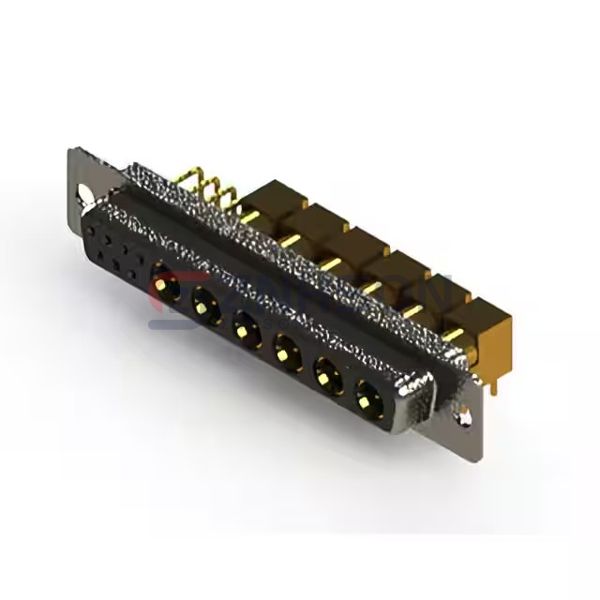

630-13W6240-5T1
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 13POS R/A SLDR
$12.08
Available to order
Reference Price (USD)
1+
$12.07960
500+
$11.958804
1000+
$11.838008
1500+
$11.717212
2000+
$11.596416
2500+
$11.47562
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 630-13W6240-5T1 from EDAC Inc. represents the next evolution in D-Sub connector technology within our Connectors division. These high-reliability interconnects feature glass-filled thermoplastic shells for lightweight applications and include EMI/RFI filtering options. With operating temperatures from -55 C to +125 C, the 630-13W6240-5T1 series is perfect for oilfield instrumentation, marine navigation systems, and outdoor telecom infrastructure. The unique dual-lock design ensures positive mating retention even under extreme shock conditions, making these connectors preferred for defense applications and mobile emergency response equipment.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 13 (7 + 6 Coax)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 4 (DC, C) - 13W6
- Contact Type: Coax and Signal
- Flange Feature: Housing/Shell (Unthreaded)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: 0.370" (9.40mm)
- Features: Shielded
