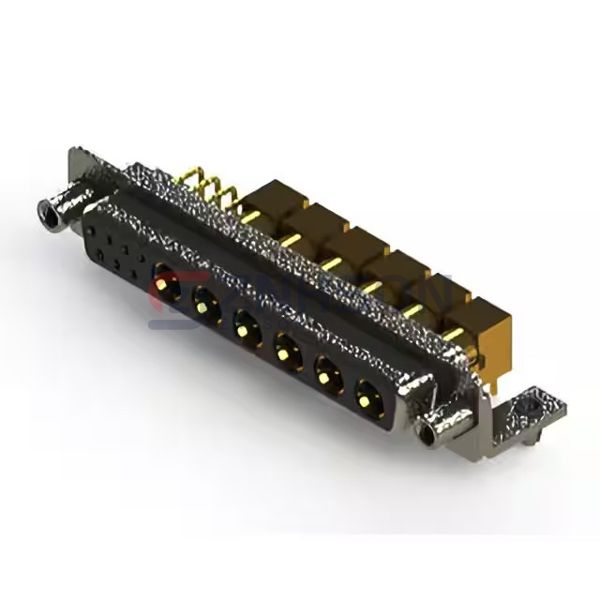

630-13W6640-7N5
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 13POS R/A SLDR
$33.29
Available to order
Reference Price (USD)
1+
$33.28688
500+
$32.9540112
1000+
$32.6211424
1500+
$32.2882736
2000+
$31.9554048
2500+
$31.622536
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the EDAC Inc. 630-13W6640-7N5 D-Sub connector series delivers unmatched performance in the Interconnects market. Featuring nickel-plated shells with keying options to prevent mis-mating, these connectors support data rates up to 1Gbps. The 630-13W6640-7N5 stands out in our catalog with its combination of 75 and 50 impedance variants for RF applications. Primary deployment scenarios include satellite communications gear, radar systems, and military encryption devices. These connectors are also widely specified in automotive diagnostics tools and industrial robotics where vibration-proof connections are essential.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 13 (7 + 6 Coax)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 4 (DC, C) - 13W6
- Contact Type: Coax and Signal
- Flange Feature: Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Mounting Brackets
Related Products
EDAC Inc.
628-17W5624-2T6
EDAC Inc.
629-13W6250-2T4
PEI-Genesis
DD15S3S000/AA
EDAC Inc.
622-015-660-055
EDAC Inc.
638-062-630-066
EDAC Inc.
629-M50-240-WT4
Conec

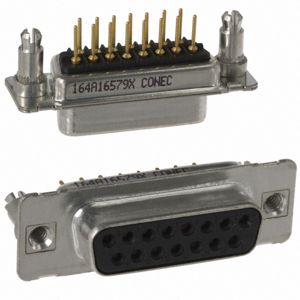

164A16579X
