630-17W5640-2TE
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 17POS R/A SLDR
$24.70
Available to order
Reference Price (USD)
1+
$24.69753
500+
$24.4505547
1000+
$24.2035794
1500+
$23.9566041
2000+
$23.7096288
2500+
$23.4626535
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 630-17W5640-2TE redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 630-17W5640-2TE is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 17 (15 + 2 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B) - 17W2
- Contact Type: Signal and Power
- Flange Feature: Mating Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 20A
- Backset Spacing: 0.370" (9.40mm)
- Features: Mounting Brackets
Related Products
EDAC Inc.
627-2W2-622-4NA
Cinch Connectivity Solutions AIM-Cambridge
40-9737S
EDAC Inc.
638-026-231-076
EDAC Inc.
661-037-264-037
EDAC Inc.
628W13W3322-2N2
EDAC Inc.
630-3W3-650-2N4
EDAC Inc.
630-24W7650-1N6
EDAC Inc.
628-M09-321-BN2
EDAC Inc.

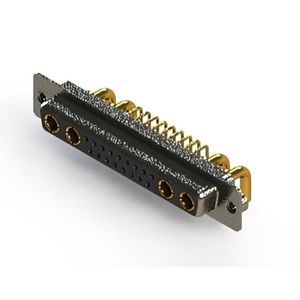

630-21W4240-2TA
