630-24W7250-4N2
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 24POS R/A SLDR
$15.14
Available to order
Reference Price (USD)
1+
$15.13580
500+
$14.984442
1000+
$14.833084
1500+
$14.681726
2000+
$14.530368
2500+
$14.37901
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the EDAC Inc. 630-24W7250-4N2 D-Sub connector series delivers unmatched performance in the Interconnects market. Featuring nickel-plated shells with keying options to prevent mis-mating, these connectors support data rates up to 1Gbps. The 630-24W7250-4N2 stands out in our catalog with its combination of 75 and 50 impedance variants for RF applications. Primary deployment scenarios include satellite communications gear, radar systems, and military encryption devices. These connectors are also widely specified in automotive diagnostics tools and industrial robotics where vibration-proof connections are essential.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 24 (17 + 7 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 5 (DD, D) - 24W7
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 40A
- Backset Spacing: 0.370" (9.40mm)
- Features: -
Related Products
EDAC Inc.
627-13W6224-2N4
EDAC Inc.
621-009-668-516
EDAC Inc.
627-5W5-222-3T1
EDAC Inc.
627W21W1624-4N5
EDAC Inc.
628-M25-322-WT2
EDAC Inc.

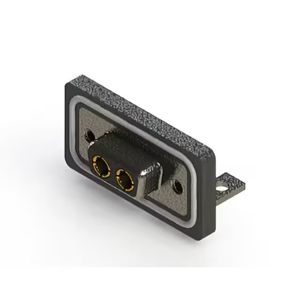

630W2W2-140-2NC
Conec
15-000753
EDAC Inc.

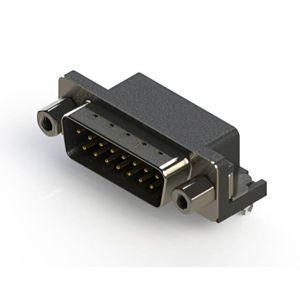

621-015-360-046
EDAC Inc.

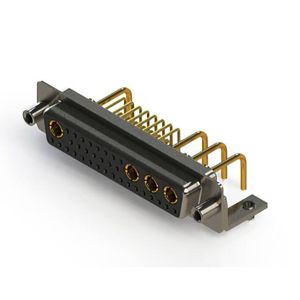

630-36W4650-1TD
