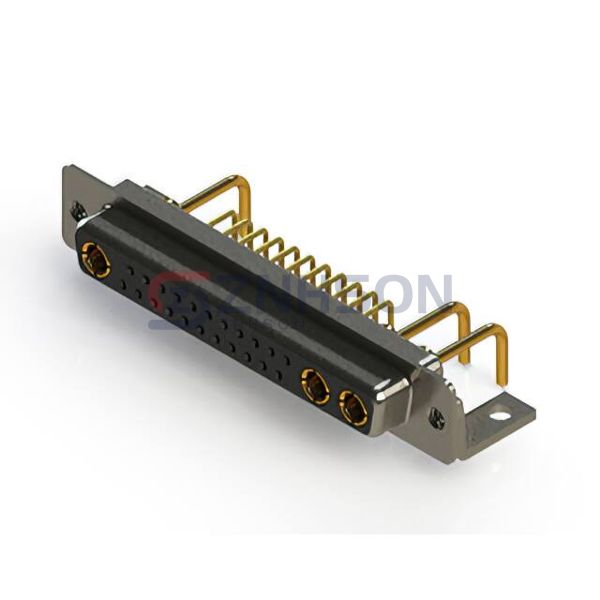

630-25W3650-1T4
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 25POS R/A SLDR
$23.12
Available to order
Reference Price (USD)
1+
$23.12193
500+
$22.8907107
1000+
$22.6594914
1500+
$22.4282721
2000+
$22.1970528
2500+
$21.9658335
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 630-25W3650-1T4 redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 630-25W3650-1T4 is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 25 (22 + 3 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 4 (DC, C) - 25W3
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 10A
- Backset Spacing: 0.370" (9.40mm)
- Features: Mounting Brackets
Related Products
EDAC Inc.
627-9W4-222-4N1
EDAC Inc.
628-M37-321-LN3
EDAC Inc.
629-5W5-650-2TA
NorComp Inc.
172-E50-202-031
EDAC Inc.
627-9W4-624-4TC
EDAC Inc.
629-7W2-640-7N6
EDAC Inc.
629-24W7640-7T2
EDAC Inc.

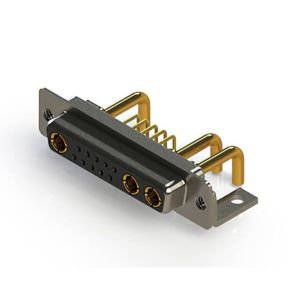

630-13W3650-2NC
EDAC Inc.

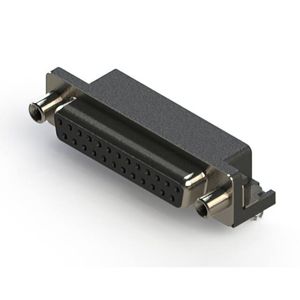

622-025-668-040
