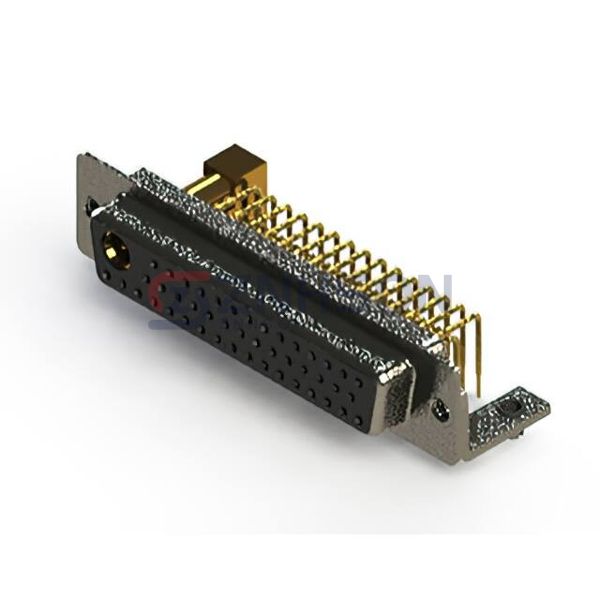

630-47W1240-7NB
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 47POS R/A SLDR
$22.21
Available to order
Reference Price (USD)
1+
$22.21330
500+
$21.991167
1000+
$21.769034
1500+
$21.546901
2000+
$21.324768
2500+
$21.102635
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 630-47W1240-7NB redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 630-47W1240-7NB is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 47 (46 + 1 Coax)
- Number of Rows: 3
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 5 (DD, D) - 47W1
- Contact Type: Coax and Signal
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Mounting Brackets
Related Products
EDAC Inc.
629-47W1240-4N6
Positronic
RD25M100T2C
EDAC Inc.
628-M15-321-GN4
EDAC Inc.
630-2W2-640-4N1
EDAC Inc.
629-21W1250-2N4
EDAC Inc.
627-9W4-222-1N1
EDAC Inc.
627-M09-620-LT5
Molex
1731070436
EDAC Inc.

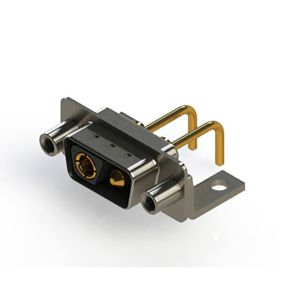

629-2WK2650-1T6
