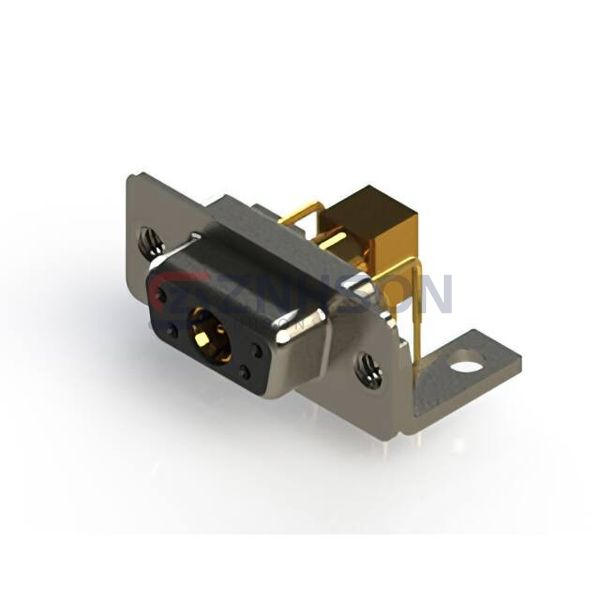

630-5W1-240-5NC
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 5POS R/A SLDR
$8.10
Available to order
Reference Price (USD)
1+
$8.10020
500+
$8.019198
1000+
$7.938196
1500+
$7.857194
2000+
$7.776192
2500+
$7.69519
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 630-5W1-240-5NC D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 630-5W1-240-5NC differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 5 (4 + 1 Coax)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 1 (DE, E) - 5W1
- Contact Type: Coax and Signal
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: 0.370" (9.40mm)
- Features: Mounting Brackets
Related Products
TE Connectivity AMP Connectors
5745185-7
Positronic
RD25M1S50V3Z/AA
EDAC Inc.
663-025-364-031
Molex
1731100073
EDAC Inc.
628-17W5222-2N2
Conec
241A16110X
EDAC Inc.
628-47W1224-1N1
EDAC Inc.
629-17W2640-4NC
Positronic

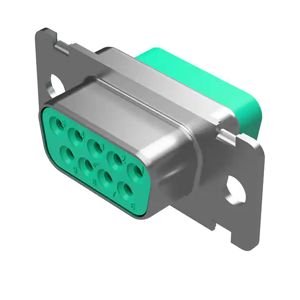

RD25M10Z00
