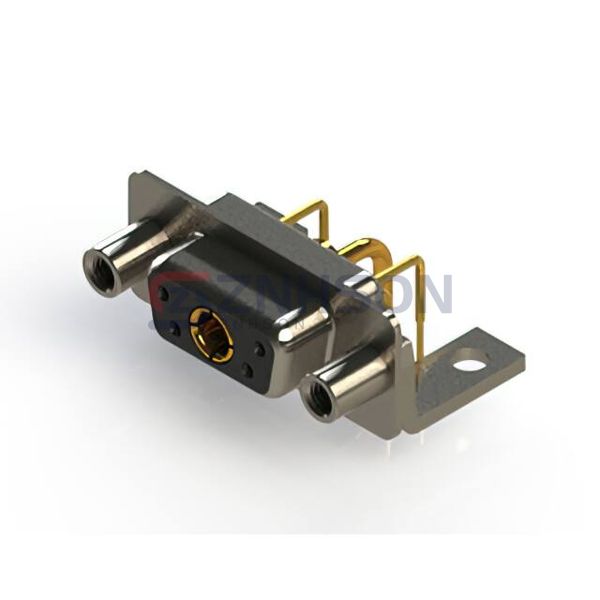

630-5W1-640-1NE
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 5POS R/A SLDR
$11.95
Available to order
Reference Price (USD)
1+
$11.94584
500+
$11.8263816
1000+
$11.7069232
1500+
$11.5874648
2000+
$11.4680064
2500+
$11.348548
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 630-5W1-640-1NE redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 630-5W1-640-1NE is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 5 (4 + 1 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 1 (DE, E) - 5W1
- Contact Type: Signal and Power
- Flange Feature: Mating Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 10A
- Backset Spacing: 0.370" (9.40mm)
- Features: Mounting Brackets
