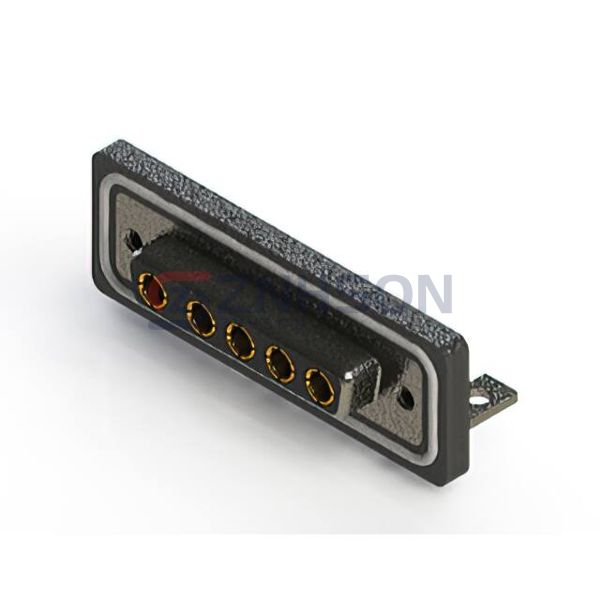

630W5W5-140-3NC
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 5POS R/A SLDR
$22.06
Available to order
Reference Price (USD)
1+
$22.06100
500+
$21.84039
1000+
$21.61978
1500+
$21.39917
2000+
$21.17856
2500+
$20.95795
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 630W5W5-140-3NC redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 630W5W5-140-3NC is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 5 (Power)
- Number of Rows: 1
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B) - 5W5
- Contact Type: Power
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 5.00µin (0.127µm)
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 30A
- Backset Spacing: -
- Features: Mounting Brackets, Shielded
