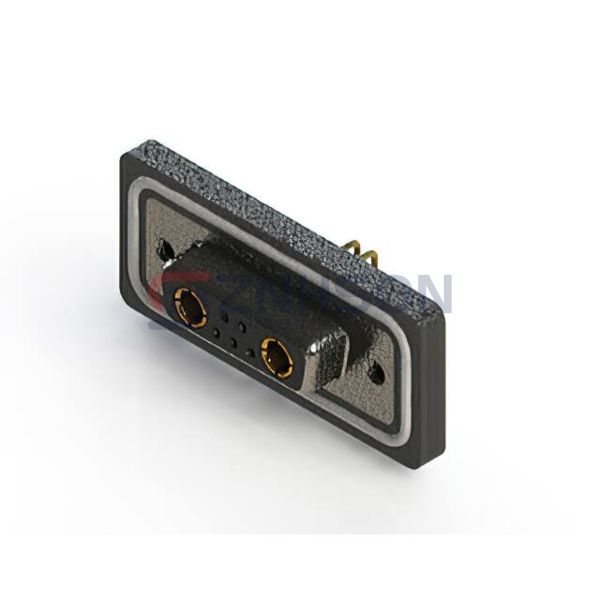

630W7W2-640-3N2
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 7POS R/A SLDR
$19.87
Available to order
Reference Price (USD)
1+
$19.86860
500+
$19.669914
1000+
$19.471228
1500+
$19.272542
2000+
$19.073856
2500+
$18.87517
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 630W7W2-640-3N2 redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 630W7W2-640-3N2 is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 7 (5 + 2 Power)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A) - 7W2
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 30A
- Backset Spacing: -
- Features: Shielded
