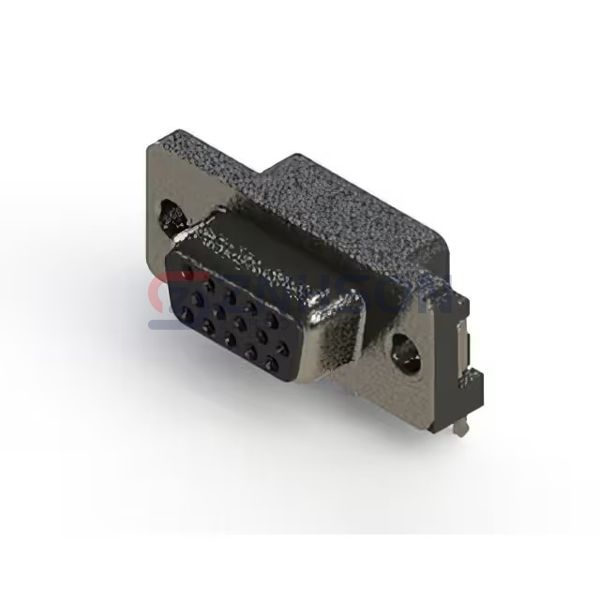

632-015-366-531
EDAC Inc.
EDAC Inc.
632 SERIES RIGHT ANGLE D-SUB REC
$2.64
Available to order
Reference Price (USD)
1+
$2.63913
500+
$2.6127387
1000+
$2.5863474
1500+
$2.5599561
2000+
$2.5335648
2500+
$2.5071735
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 632-015-366-531 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 632-015-366-531 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, High Density
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 15
- Number of Rows: 3
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 1 (DE, E) High Density
- Contact Type: Signal
- Flange Feature: Housing/Shell (Unthreaded)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 15.0µin (0.38µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.121" (3.08mm)
- Features: Board Lock, Shielded
Related Products
EDAC Inc.
629-9W4-250-1N1
EDAC Inc.
663-025-264-059
EDAC Inc.
627-M37-223-BN2
EDAC Inc.
629-2W2-640-2NB
EDAC Inc.
628-8W8-624-4ND
EDAC Inc.

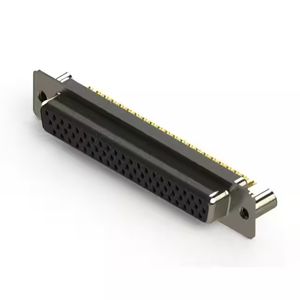

638-M62-632-BT3
EDAC Inc.

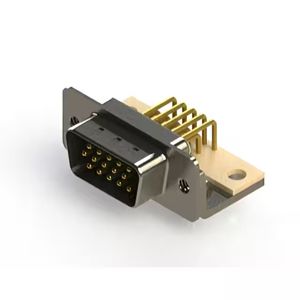

633-M15-363-WN4
EDAC Inc.

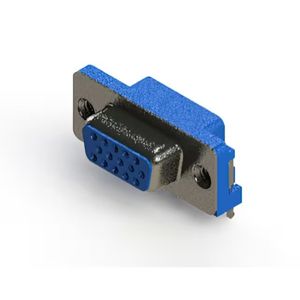

632-015-674-532
EDAC Inc.

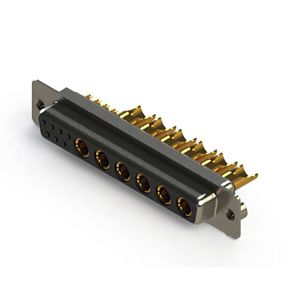

628-13W6622-4T2
