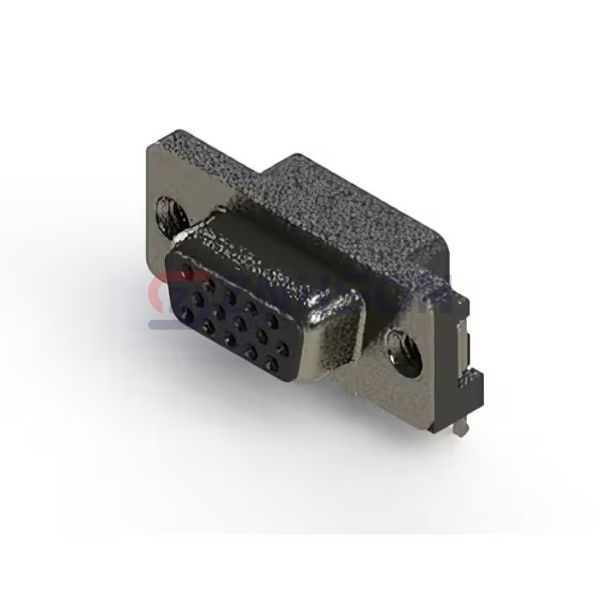

632-015-366-532
EDAC Inc.
EDAC Inc.
632 SERIES RIGHT ANGLE D-SUB REC
$2.64
Available to order
Reference Price (USD)
1+
$2.63913
500+
$2.6127387
1000+
$2.5863474
1500+
$2.5599561
2000+
$2.5335648
2500+
$2.5071735
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 632-015-366-532 redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 632-015-366-532 is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, High Density
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 15
- Number of Rows: 3
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 1 (DE, E) High Density
- Contact Type: Signal
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 15.0µin (0.38µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.121" (3.08mm)
- Features: Board Lock, Shielded
