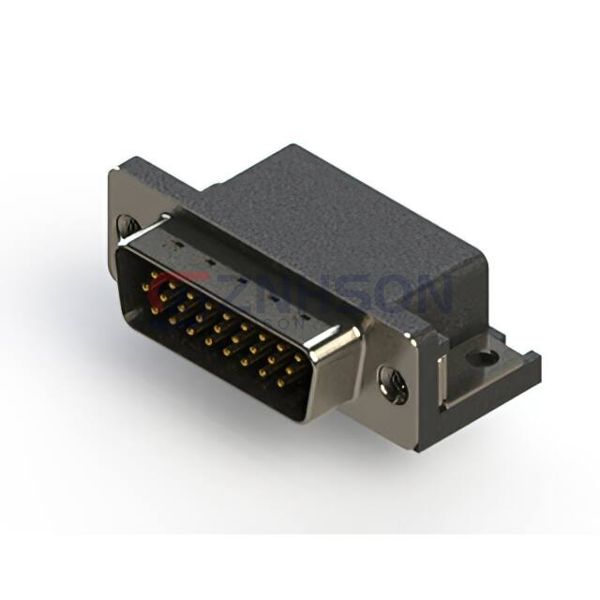

633-026-363-015
EDAC Inc.
EDAC Inc.
633 SERIES RIGHT ANGLE D-SUB PLU
$6.22
Available to order
Reference Price (USD)
1+
$6.21600
500+
$6.15384
1000+
$6.09168
1500+
$6.02952
2000+
$5.96736
2500+
$5.9052
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the EDAC Inc. 633-026-363-015 D-Sub connector series delivers unmatched performance in the Interconnects market. Featuring nickel-plated shells with keying options to prevent mis-mating, these connectors support data rates up to 1Gbps. The 633-026-363-015 stands out in our catalog with its combination of 75 and 50 impedance variants for RF applications. Primary deployment scenarios include satellite communications gear, radar systems, and military encryption devices. These connectors are also widely specified in automotive diagnostics tools and industrial robotics where vibration-proof connections are essential.
Specifications
- Product Status: Active
- Connector Style: D-Sub, High Density
- Connector Type: Plug, Male Pins
- Number of Positions: 26
- Number of Rows: 3
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A) High Density
- Contact Type: Signal
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 15.0µin (0.38µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.350" (8.89mm)
- Features: Grounding Indents, Mounting Brackets, Shielded
