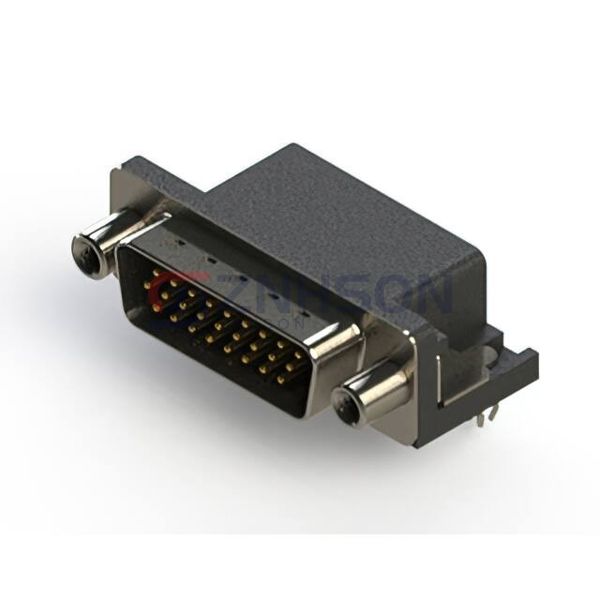

633-026-663-540
EDAC Inc.
EDAC Inc.
633 SERIES RIGHT ANGLE D-SUB PLU
$9.83
Available to order
Reference Price (USD)
1+
$9.82800
500+
$9.72972
1000+
$9.63144
1500+
$9.53316
2000+
$9.43488
2500+
$9.3366
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the EDAC Inc. 633-026-663-540 D-Sub connector series delivers unmatched performance in the Interconnects market. Featuring nickel-plated shells with keying options to prevent mis-mating, these connectors support data rates up to 1Gbps. The 633-026-663-540 stands out in our catalog with its combination of 75 and 50 impedance variants for RF applications. Primary deployment scenarios include satellite communications gear, radar systems, and military encryption devices. These connectors are also widely specified in automotive diagnostics tools and industrial robotics where vibration-proof connections are essential.
Specifications
- Product Status: Active
- Connector Style: D-Sub, High Density
- Connector Type: Plug, Male Pins
- Number of Positions: 26
- Number of Rows: 3
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A) High Density
- Contact Type: Signal
- Flange Feature: Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.350" (8.89mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Related Products
EDAC Inc.
622-M15-260-LT5
EDAC Inc.
633-M26-363-WT1
EDAC Inc.
633-026-263-515
EDAC Inc.
628-2W2-222-1NA
EDAC Inc.
634-M15-263-BT2
EDAC Inc.
627-47W1624-4N1
EDAC Inc.
629-2WK2640-4T2
EDAC Inc.
628-13W6224-3ND
EDAC Inc.

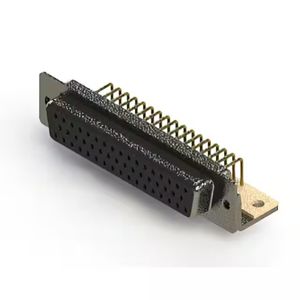

622-M50-260-BN4
