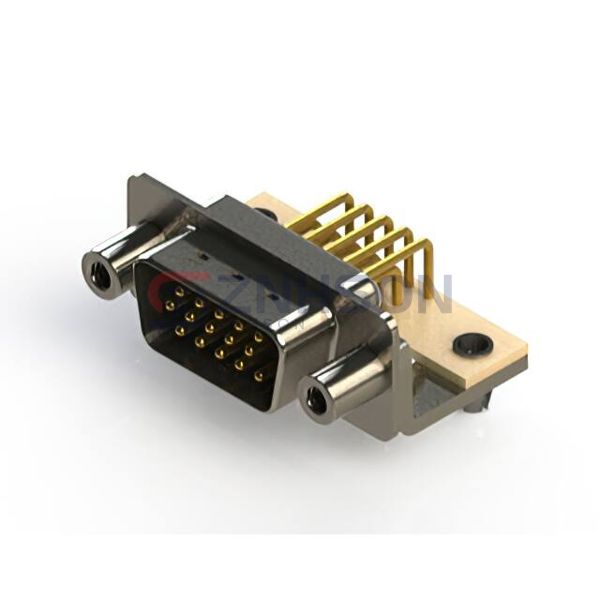

633-M15-663-WN5
EDAC Inc.
EDAC Inc.
633M SERIES RIGHT ANGLE D-SUB PL
$9.70
Available to order
Reference Price (USD)
1+
$9.69832
500+
$9.6013368
1000+
$9.5043536
1500+
$9.4073704
2000+
$9.3103872
2500+
$9.213404
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 633-M15-663-WN5 redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 633-M15-663-WN5 is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, High Density
- Connector Type: Plug, Male Pins
- Number of Positions: 15
- Number of Rows: 3
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 1 (DE, E) High Density
- Contact Type: Signal
- Flange Feature: Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A per Contact
- Backset Spacing: 0.350" (8.89mm)
- Features: Grounding Indents, Shielded
Related Products
PEI-Genesis
DD44M32S60V3S
EDAC Inc.
627-13W6224-4N5
EDAC Inc.
633-026-263-555
NorComp Inc.
172-E50-201R011
EDAC Inc.
629-43W2240-1T5
Conec
3017W5PCT56N40X
EDAC Inc.
628-3W3-622-4NA
TE Connectivity AMP Connectors
749621-2
EDAC Inc.

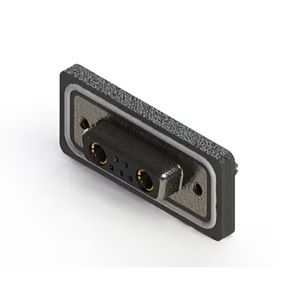

628W7W2-124-3N5
