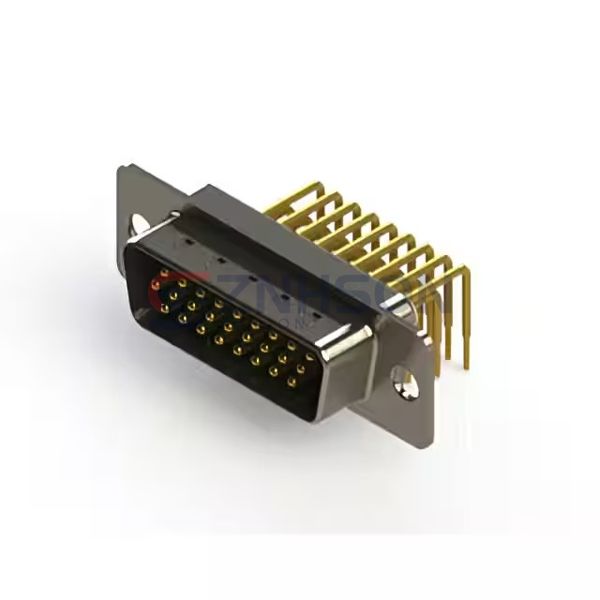

633-M26-663-WT1
EDAC Inc.
EDAC Inc.
633M SERIES RIGHT ANGLE D-SUB PL
$12.33
Available to order
Reference Price (USD)
1+
$12.32794
500+
$12.2046606
1000+
$12.0813812
1500+
$11.9581018
2000+
$11.8348224
2500+
$11.711543
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc. presents the 633-M26-663-WT1 D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 633-M26-663-WT1 is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub, High Density
- Connector Type: Plug, Male Pins
- Number of Positions: 26
- Number of Rows: 3
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A) High Density
- Contact Type: Signal
- Flange Feature: Housing/Shell (Unthreaded)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A per Contact
- Backset Spacing: 0.350" (8.89mm)
- Features: Grounding Indents, Shielded
Related Products
EDAC Inc.
628-21W1224-3T6
EDAC Inc.
621-M15-660-WT1
EDAC Inc.
629-17W2640-4ND
PEI-Genesis
DD15M20GV30/AA
EDAC Inc.
627-M37-620-LN5
EDAC Inc.
630-47W1240-4N5
HARTING
09563517500
EDAC Inc.
629-9W4-240-1NC
EDAC Inc.

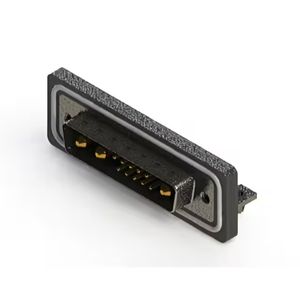

629W13W3240-3N3
