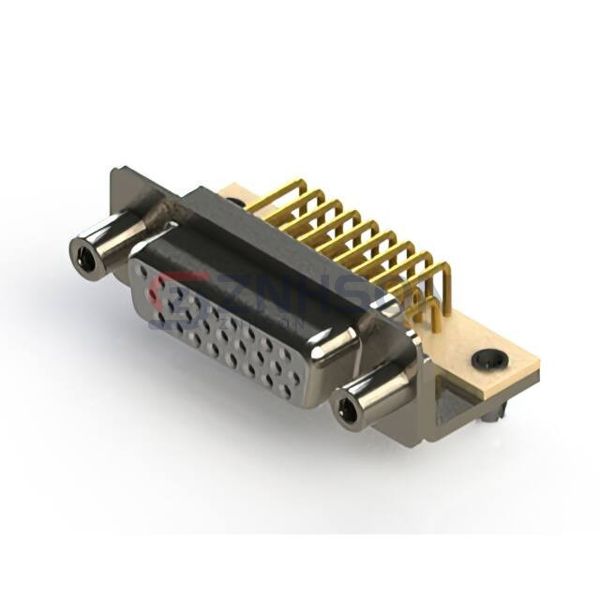

634-M26-263-WT5
EDAC Inc.
EDAC Inc.
634M SERIES RIGHT ANGLE D-SUB
$9.96
Available to order
Reference Price (USD)
1+
$9.96030
500+
$9.860697
1000+
$9.761094
1500+
$9.661491
2000+
$9.561888
2500+
$9.462285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the versatility of EDAC Inc.'s 634-M26-263-WT5 D-Sub connectors - essential components in modern interconnect systems. Our catalog showcases these connectors' unique combination of standard and reverse gender configurations with mixed layouts (power+signal+coax). The 634-M26-263-WT5 excels in medical imaging devices, semiconductor manufacturing equipment, and renewable energy systems. Specific use cases include MRI machine interfaces, wafer stepper connections, and solar inverter communications. These RoHS-compliant connectors feature color-coded shells for easy identification and support both crimp and insulation displacement contact styles.
Specifications
- Product Status: Active
- Connector Style: D-Sub, High Density
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 26
- Number of Rows: 3
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A) High Density
- Contact Type: Signal
- Flange Feature: Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A per Contact
- Backset Spacing: 0.350" (8.89mm)
- Features: Board Lock, Mounting Brackets, Shielded
Related Products
Positronic
RD50S1S50T2S
EDAC Inc.
629-27W2640-2N6
EDAC Inc.
627W2WK2624-4N5
EDAC Inc.
627-5W1-224-7NA
EDAC Inc.
628-36W4624-3N1
EDAC Inc.
638-M26-632-BT3
EDAC Inc.

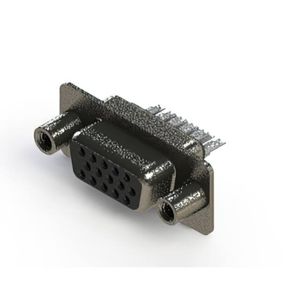

638-015-232-268
EDAC Inc.

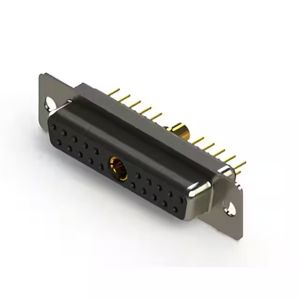

628-21W1624-4T1
EDAC Inc.

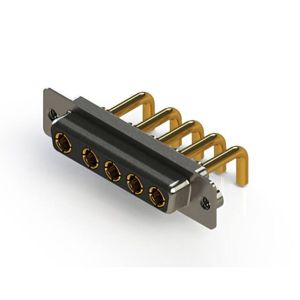

630-5W5-650-2TA
