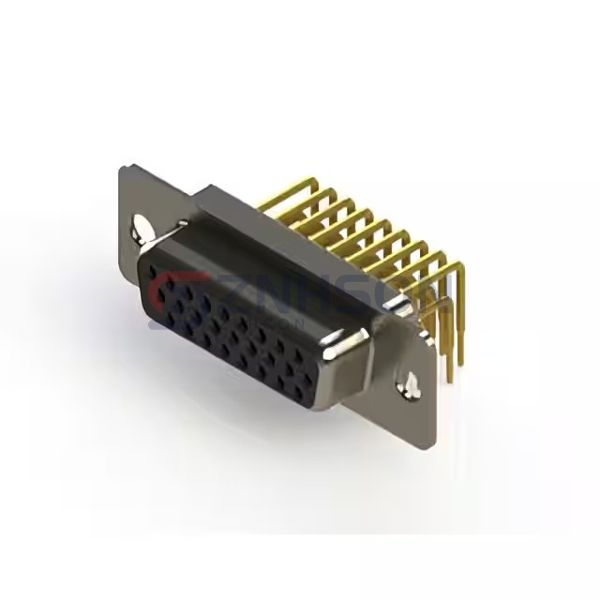

634-M26-363-BT1
EDAC Inc.
EDAC Inc.
634M SERIES RIGHT ANGLE D-SUB
$11.80
Available to order
Reference Price (USD)
1+
$11.79937
500+
$11.6813763
1000+
$11.5633826
1500+
$11.4453889
2000+
$11.3273952
2500+
$11.2094015
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc. presents the 634-M26-363-BT1 D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 634-M26-363-BT1 is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub, High Density
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 26
- Number of Rows: 3
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A) High Density
- Contact Type: Signal
- Flange Feature: Housing/Shell (Unthreaded)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 15.0µin (0.38µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A per Contact
- Backset Spacing: 0.350" (8.89mm)
- Features: Shielded
Related Products
EDAC Inc.
629-13W3650-2T5
EDAC Inc.
627-3WK3624-3TA
EDAC Inc.
630-13W6240-2N6
EDAC Inc.

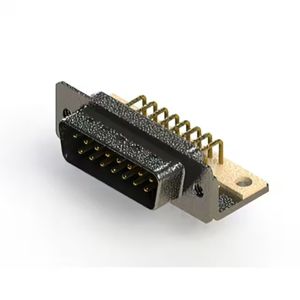

629-M15-340-BN4
EDAC Inc.

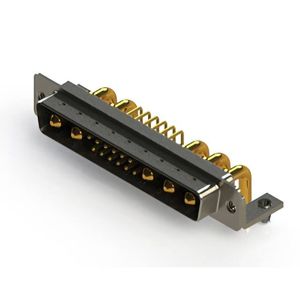

629-17W5240-3TB
EDAC Inc.

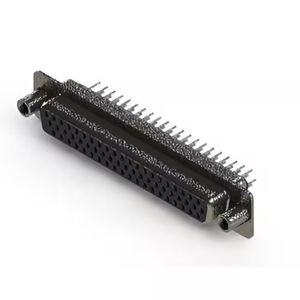

638-062-330-268
EDAC Inc.
628-47W1224-3TE
EDAC Inc.

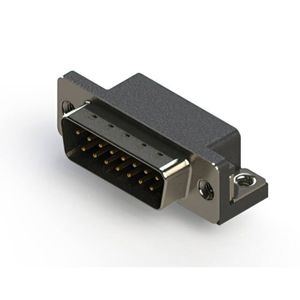

621-015-360-055
EDAC Inc.

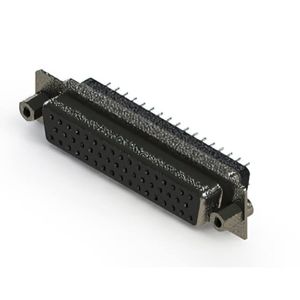

628-050-228-043
