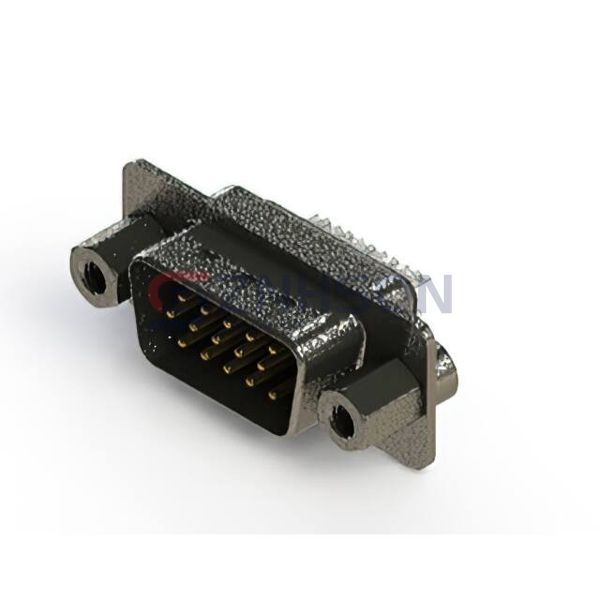

637-015-232-263
EDAC Inc.
EDAC Inc.
CONN D-SUB HD PLUG 15P SLDR CUP
$3.20
Available to order
Reference Price (USD)
1+
$3.19720
500+
$3.165228
1000+
$3.133256
1500+
$3.101284
2000+
$3.069312
2500+
$3.03734
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc. presents the 637-015-232-263 D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 637-015-232-263 is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub, High Density
- Connector Type: Plug, Male Pins
- Number of Positions: 15
- Number of Rows: 3
- Mounting Type: Free Hanging (In-Line)
- Shell Size, Connector Layout: 1 (DE, E) High Density
- Contact Type: Signal
- Flange Feature: Mating Side, Female Screwlock (4-40)
- Termination: Solder Cup
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: -
- Features: Grounding Indents, Shielded
Related Products
Omnetics
A29100-031
EDAC Inc.
629-25W3650-1N2
EDAC Inc.
628-17W5622-1NA
EDAC Inc.
663-037-264-032
ITT Cannon, LLC

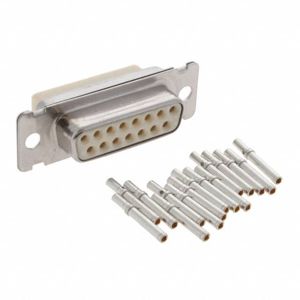

DAMA15SF225
EDAC Inc.

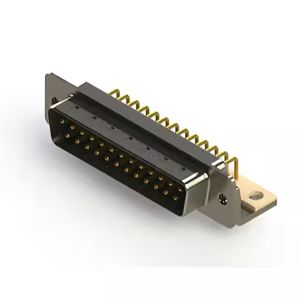

621-M25-260-WN4
EDAC Inc.

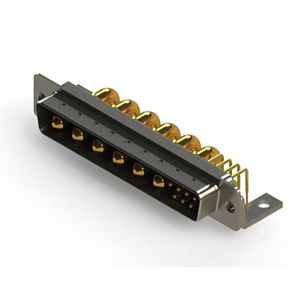

629-13W6640-4T4
EDAC Inc.

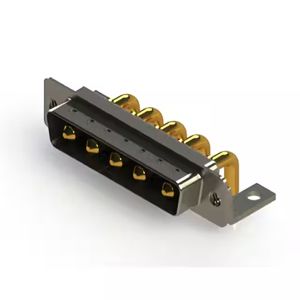

629-5W5-640-3TC
Amphenol ICC (FCI)

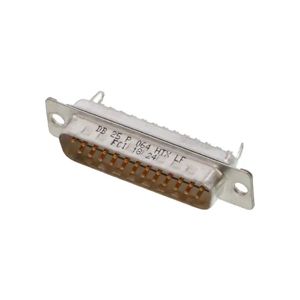

DB25P064HTXLF
