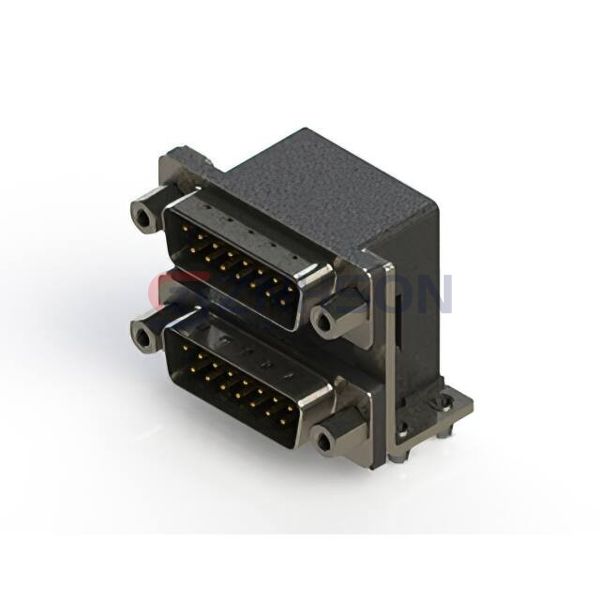

661-015-264-046
EDAC Inc.
EDAC Inc.
661 SERIES RIGHT ANGLE DUAL D-SU
$7.31
Available to order
Reference Price (USD)
1+
$7.30960
500+
$7.236504
1000+
$7.163408
1500+
$7.090312
2000+
$7.017216
2500+
$6.94412
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the EDAC Inc. 661-015-264-046 D-Sub connector series delivers unmatched performance in the Interconnects market. Featuring nickel-plated shells with keying options to prevent mis-mating, these connectors support data rates up to 1Gbps. The 661-015-264-046 stands out in our catalog with its combination of 75 and 50 impedance variants for RF applications. Primary deployment scenarios include satellite communications gear, radar systems, and military encryption devices. These connectors are also widely specified in automotive diagnostics tools and industrial robotics where vibration-proof connections are essential.
Specifications
- Product Status: Active
- Connector Style: D-Sub - Stacked
- Connector Type: Plug, Male Pins
- Number of Positions: 15, 15
- Number of Rows: 2, 2
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A); 2 (DA, A)
- Contact Type: Signal
- Flange Feature: Mating Side, Female Screwlock (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.318" (8.08mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
