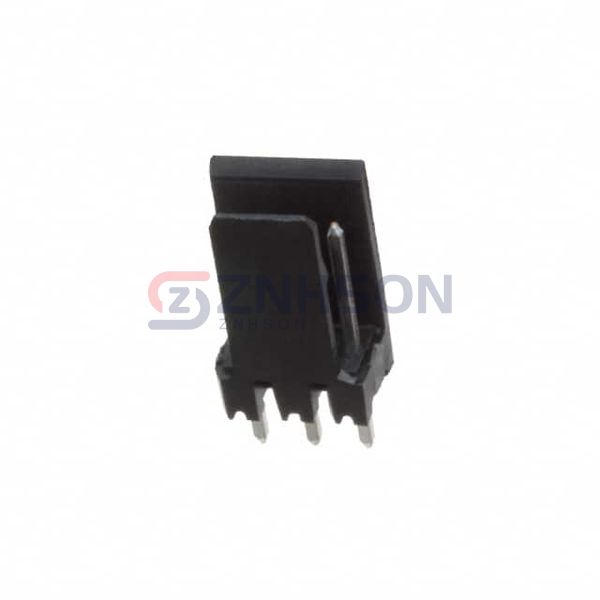

66100311622
Würth Elektronik
Würth Elektronik
CONN HEADER VERT 3POS 2.54MM
$0.51
Available to order
Reference Price (USD)
1+
$0.51000
500+
$0.5049
1000+
$0.4998
1500+
$0.4947
2000+
$0.4896
2500+
$0.4845
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 66100311622 by Würth Elektronik is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 66100311622 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Würth Elektronik ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.276" (7.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.496" (12.60mm)
- Insulation Height: 0.445" (11.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA46), Nylon 4/6
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 50VAC
