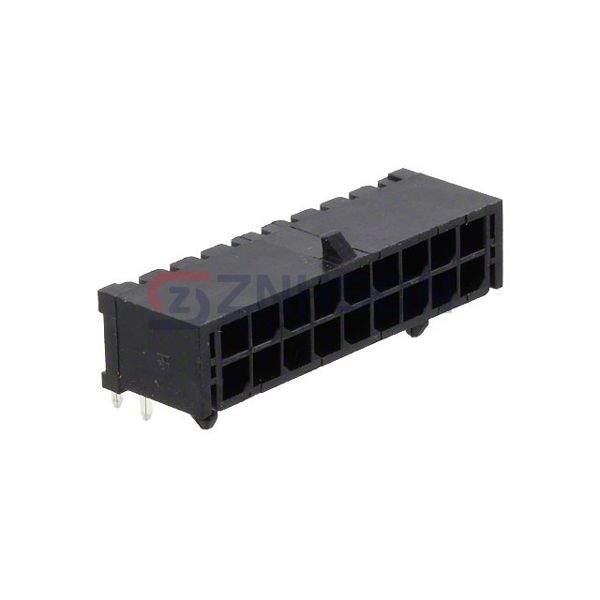

66201821022
Würth Elektronik
Würth Elektronik
CONN HEADER R/A 18POS 3MM
$1.38
Available to order
Reference Price (USD)
1+
$1.30000
10+
$1.27000
100+
$1.17200
250+
$1.02500
500+
$0.95200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 66201821022 by Würth Elektronik is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 66201821022 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Würth Elektronik ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.290" (7.37mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 5A
- Voltage Rating: 250V
Related Products
Molex
0022288041
Samtec Inc.
TSM-118-01-S-SV-P-TR
Molex
0015800405
Amphenol ICC (FCI)
77313-424-46LF
Preci-Dip
351-10-124-00-003101
Preci-Dip

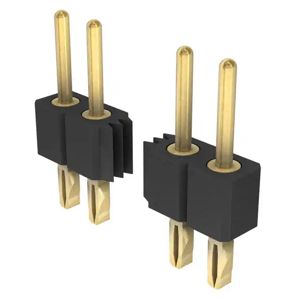

800-10-033-65-001101
Samtec Inc.

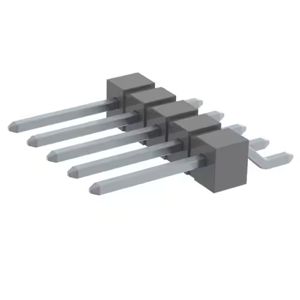

TSM-105-02-T-SH-P
Sullins Connector Solutions
PBC18DFEN
Molex

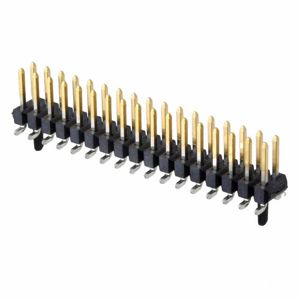

0015911343
