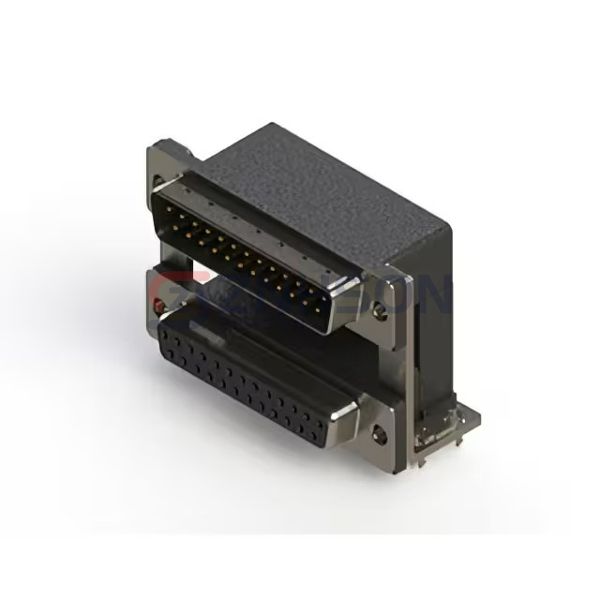

663-025-264-030
EDAC Inc.
EDAC Inc.
663 SERIES RIGHT ANGLE DUAL D-SU
$8.13
Available to order
Reference Price (USD)
1+
$8.12840
500+
$8.047116
1000+
$7.965832
1500+
$7.884548
2000+
$7.803264
2500+
$7.72198
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 663-025-264-030 redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 663-025-264-030 is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub - Stacked
- Connector Type: Plug, Male Pins; Receptacle, Female Sockets
- Number of Positions: 25, 25
- Number of Rows: 2, 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
- Contact Type: Signal
- Flange Feature: Housing/Shell (Unthreaded)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.318" (8.08mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Related Products
EDAC Inc.
628-8W8-622-4N1
EDAC Inc.
638-015-631-073
EDAC Inc.
630-2WK2640-2ND
TE Connectivity AMP Connectors
5745076-3
EDAC Inc.
627-015-622-243
EDAC Inc.
629-13W6240-3T3
EDAC Inc.

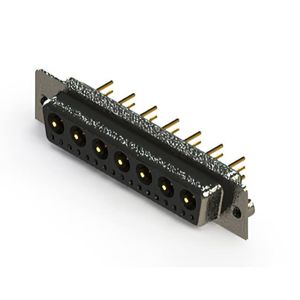

628-24W7624-7T2
EDAC Inc.

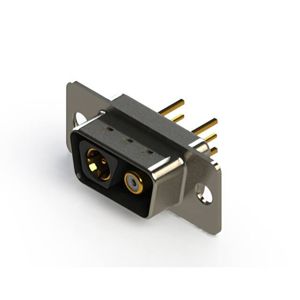

627-2WK2624-7T1
EDAC Inc.

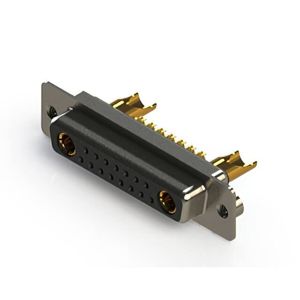

628-17W2222-4TA
