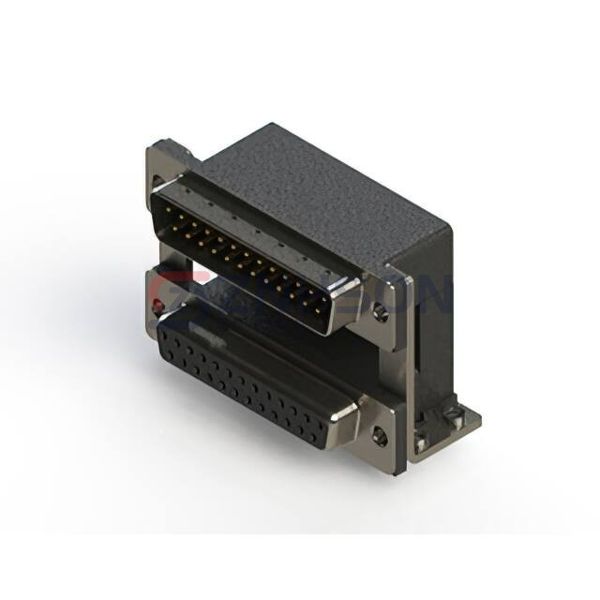

663-025-264-05C
EDAC Inc.
EDAC Inc.
CONN D-SUB PLUG/RCPT 25P R/A SLD
$8.01
Available to order
Reference Price (USD)
1+
$8.00560
500+
$7.925544
1000+
$7.845488
1500+
$7.765432
2000+
$7.685376
2500+
$7.60532
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 663-025-264-05C D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 663-025-264-05C differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub - Stacked
- Connector Type: Plug, Male Pins; Receptacle, Female Sockets
- Number of Positions: 25, 25
- Number of Rows: 2, 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
- Contact Type: Signal
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.318" (8.08mm)
- Features: Grounding Indents, Mounting Brackets, Shielded
Related Products
EDAC Inc.
629-21W4240-4TB
EDAC Inc.
627-015-620-263
EDAC Inc.
628-2WK2622-3T1
EDAC Inc.
630-3W3-640-7TE
EDAC Inc.
663-009-264-003
EDAC Inc.
634-015-263-545
EDAC Inc.
629-17W2640-2NB
EDAC Inc.
629-25W3240-5T6
Kycon, Inc.

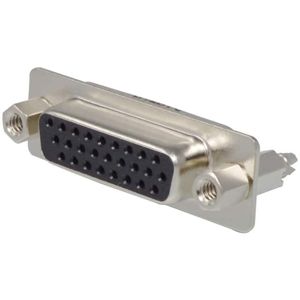

K86X-AD-26S-BRJ
