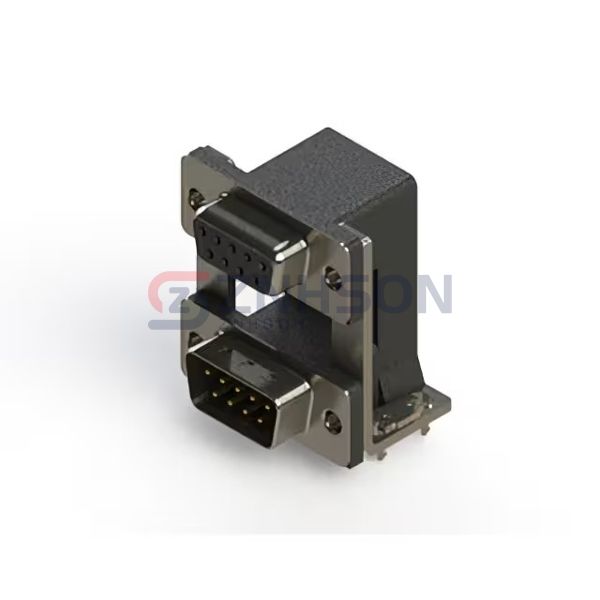

664-009-664-03A
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT/PLUG 9P R/A SLDR
$7.12
Available to order
Reference Price (USD)
1+
$7.11900
500+
$7.04781
1000+
$6.97662
1500+
$6.90543
2000+
$6.83424
2500+
$6.76305
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc. presents the 664-009-664-03A D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 664-009-664-03A is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub - Stacked
- Connector Type: Receptacle, Female Socket ; Plug, Male Pins
- Number of Positions: 9, 9
- Number of Rows: 2, 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 1 (DE, E); 1 (DE, E)
- Contact Type: Signal
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.318" (8.08mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Related Products
EDAC Inc.

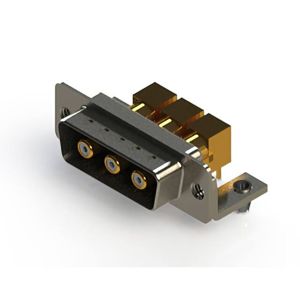

629-3W3-240-5TB
CNC Tech
400F0-09-1-00
EDAC Inc.
628-8W8-224-1TA
TE Connectivity AMP Connectors

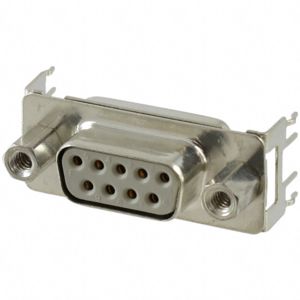

7-1393740-0
EDAC Inc.

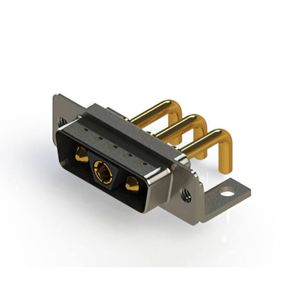

629-3WK3250-2N4
ITT Cannon, LLC

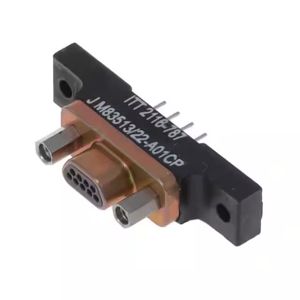

M83513/22-A01CP
EDAC Inc.

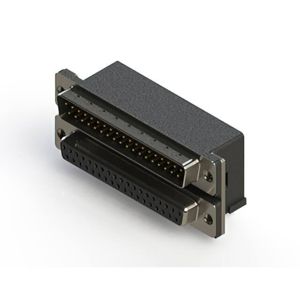

663-037-364-001
EDAC Inc.

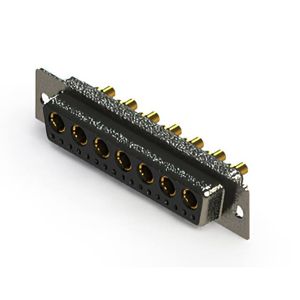

628-24W7224-2N1
EDAC Inc.

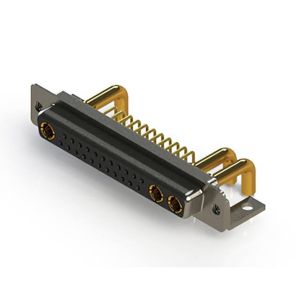

630-25W3650-4N4
