68000-213HLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

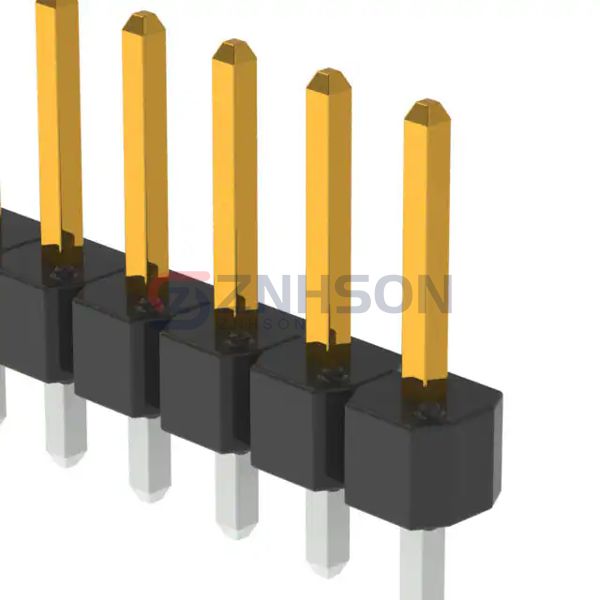

CONN HEADER VERT 13POS 2.54MM
$0.57
Available to order
Reference Price (USD)
1+
$0.56942
500+
$0.5637258
1000+
$0.5580316
1500+
$0.5523374
2000+
$0.5466432
2500+
$0.540949
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 68000-213HLF rectangular connector header from Amphenol ICC (FCI) for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Amphenol ICC (FCI) is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 13
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.095" (2.41mm)
- Overall Contact Length: 0.425" (10.80mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold, GXT™
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: -
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
