6850-4500PL
3M
3M

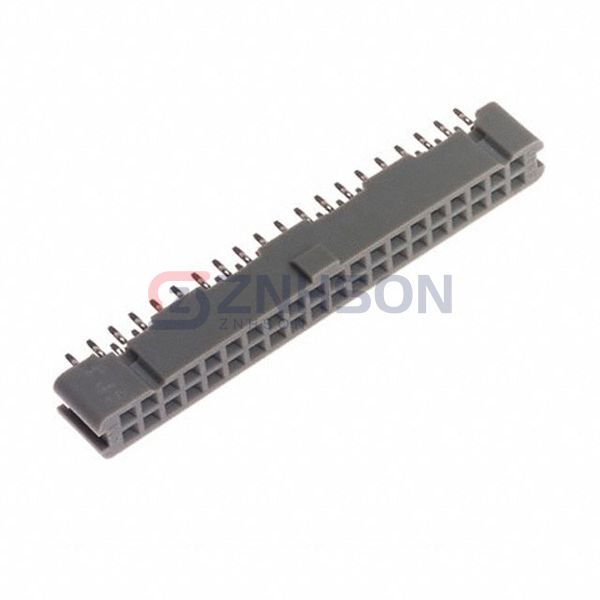

CONN RCPT 50POS 0.1 GOLD PCB
$4.43
Available to order
Reference Price (USD)
1+
$3.62000
10+
$3.47500
100+
$2.89600
500+
$2.46160
1,000+
$2.09960
5,000+
$1.88240
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with 6850-4500PL 3M Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, 3M connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 50
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 12.0µin (0.30µm)
- Insulation Color: Gray
- Insulation Height: 0.283" (7.19mm)
- Contact Length - Post: 0.110" (2.79mm)
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Polarizing Key
- Current Rating (Amps): 1A
- Voltage Rating: 1000V
