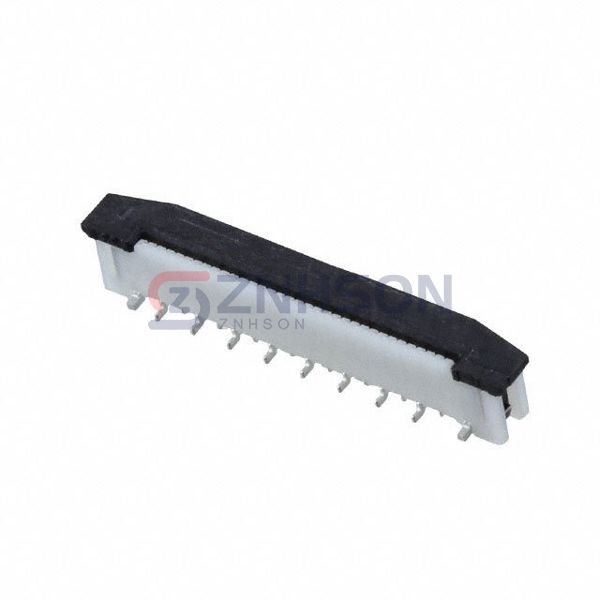

686116183822
Würth Elektronik
Würth Elektronik
CONN FFC VERT 16POS 1MM SMD
$2.08
Available to order
Reference Price (USD)
1,000+
$1.26100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the 686116183822 FFC/FPC Connectors from Würth Elektronik, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The 686116183822 series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Würth Elektronik's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for 686116183822 when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FFC
- Mounting Type: Surface Mount
- Connector/Contact Type: Contacts, Vertical - 2 Sided
- Number of Positions: 16
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.128" (3.25mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Polyamide (PA6T), Nylon 6T
- Actuator Material: Polyamide (PA6T), Nylon 6T
- Features: Zero Insertion Force (ZIF)
- Voltage Rating: -
- Operating Temperature: -25°C ~ 85°C
- Material Flammability Rating: UL94 V-0
