690368172272
Würth Elektronik
Würth Elektronik
WR-MM FEMALE ANGLED CONNECTOR WI
$2.17
Available to order
Reference Price (USD)
1+
$2.17000
500+
$2.1483
1000+
$2.1266
1500+
$2.1049
2000+
$2.0832
2500+
$2.0615
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

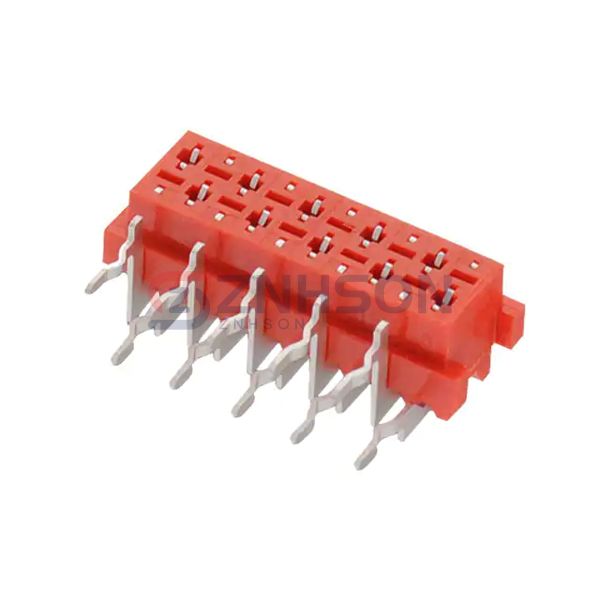

The 690368172272 Würth Elektronik Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Würth Elektronik provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Forked
- Style: Board to Board or Cable
- Number of Positions: 22
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.059" (1.50mm)
- Mounting Type: Through Hole, Right Angle
- Termination: Kinked Pin, Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Insulation Color: Red
- Insulation Height: 0.228" (5.80mm)
- Contact Length - Post: 0.122" (3.10mm)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 1.5A per Contact
- Voltage Rating: 100VAC
