695405150122
Würth Elektronik
Würth Elektronik

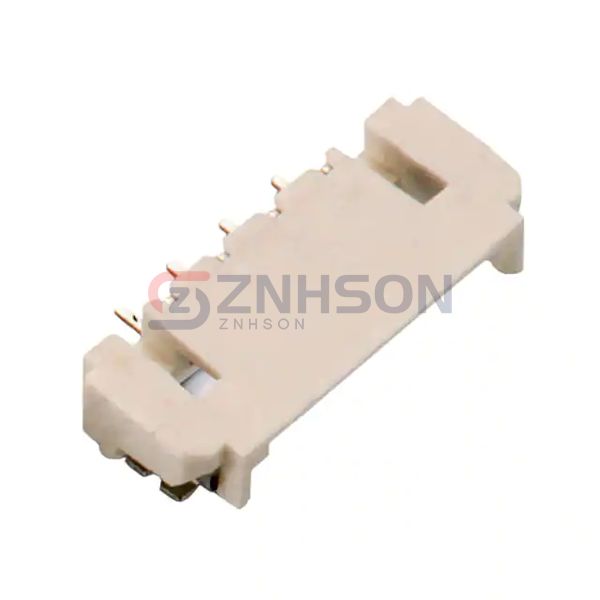

CONN HEADER SMD R/A 5POS 1.5MM
$1.18
Available to order
Reference Price (USD)
1,800+
$0.66240
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 695405150122 by Würth Elektronik is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 695405150122 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Würth Elektronik ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.073" (1.85mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: Board Guide, Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): 1A
- Voltage Rating: 150VAC
