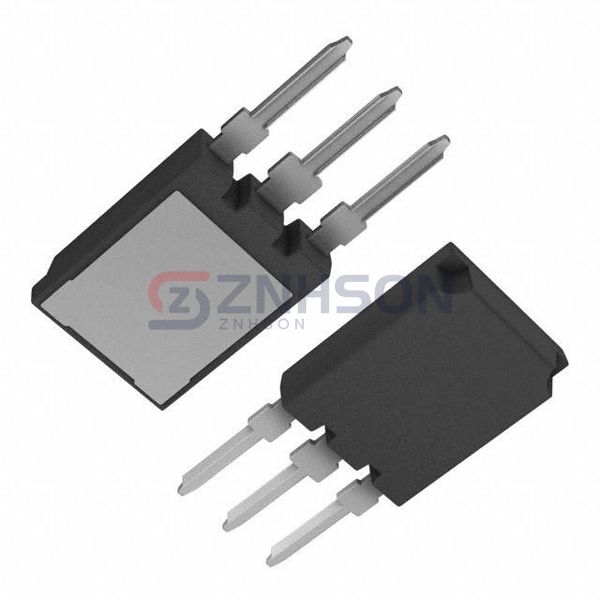

70TPS12
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
SCR 1.2KV 75A SUPER-247
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 70TPS12 from Vishay General Semiconductor - Diodes Division redefines reliability in the Thyristors - SCRs category of Discrete Semiconductor Products. With its unique reverse blocking capability and high temperature operation range, this SCR is indispensable for power electronics. Typical uses include uninterruptible power supplies, induction heating, and plasma cutting machines. For example, it's essential in semiconductor manufacturing equipment. Vishay General Semiconductor - Diodes Division's 70TPS12 combines advanced engineering with practical functionality.
Specifications
- Product Status: Obsolete
- Voltage - Off State: 1.2 kV
- Voltage - Gate Trigger (Vgt) (Max): 1.5 V
- Current - Gate Trigger (Igt) (Max): 100 mA
- Voltage - On State (Vtm) (Max): 1.4 V
- Current - On State (It (AV)) (Max): 70 A
- Current - On State (It (RMS)) (Max): 75 A
- Current - Hold (Ih) (Max): 200 mA
- Current - Off State (Max): 1 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 1400A @ 50Hz
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TO-274AA
- Supplier Device Package: SUPER-247™ (TO-274AA)
