72454-016VLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

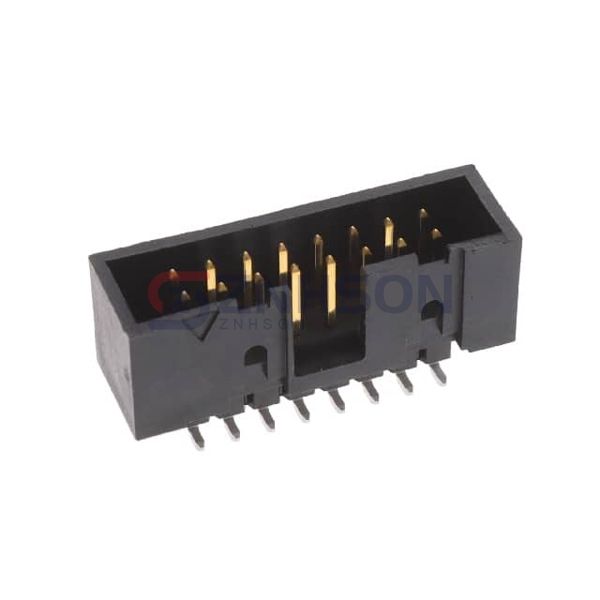

CONN HEADER SMD 16POS 2.54MM
$2.87
Available to order
Reference Price (USD)
200+
$2.07135
400+
$1.89128
600+
$1.75617
1,000+
$1.53102
2,000+
$1.48599
5,000+
$1.37792
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 72454-016VLF by Amphenol ICC (FCI) is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 72454-016VLF supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Amphenol ICC (FCI) ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.365" (9.27mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: -
- Features: Keying Slot, Pick and Place
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
