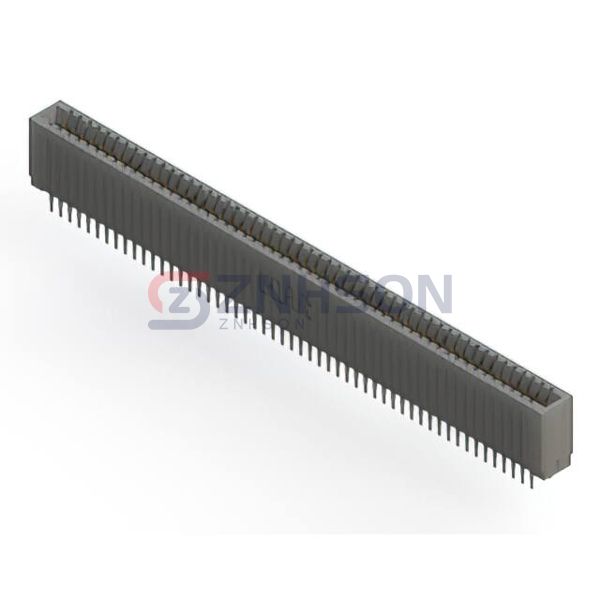

745-106-560-201
EDAC Inc.
EDAC Inc.
745 SERIES ULTRA-MATE CARD EDGE
$15.47
Available to order
Reference Price (USD)
1+
$15.46800
500+
$15.31332
1000+
$15.15864
1500+
$15.00396
2000+
$14.84928
2500+
$14.6946
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 745-106-560-201 Card Edge Connectors - Edgeboard Connectors by EDAC Inc. are high-performance interconnect solutions designed for reliable signal transmission in demanding applications. These connectors feature a robust design with precision contacts, ensuring secure connections and long-term durability. Ideal for PCB-to-PCB connections, they support high-speed data transfer and are widely used in telecommunications, industrial automation, and consumer electronics. With their compact form factor and excellent electrical properties, the 745-106-560-201 series is a top choice for engineers seeking dependable edgeboard connectivity.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 53
- Number of Positions: 106
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.100" (2.54mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole
- Termination: Press-Fit
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Contact Type: Cantilever, Make Before Break
- Color: Black
- Flange Feature: -
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
887-007-540-104
EDAC Inc.
387-040-521-607
EDAC Inc.
887-026-523-107
EDAC Inc.
845-019-541-407
EDAC Inc.
337-044-521-203
EDAC Inc.
333-031-500-112
EDAC Inc.
387-009-542-612
EDAC Inc.

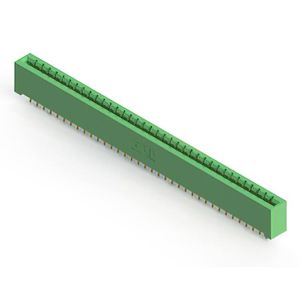

333-072-556-201
