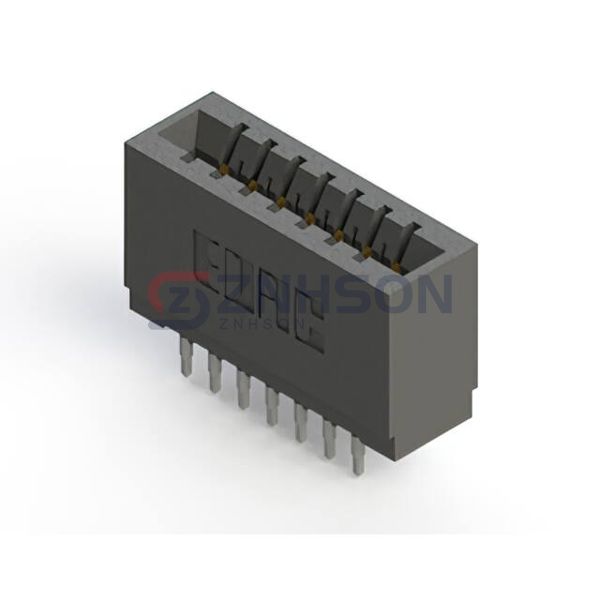

746-014-525-201
EDAC Inc.
EDAC Inc.
746 SERIES ULTRA-MATE CARD EDGE
$4.83
Available to order
Reference Price (USD)
1+
$4.83120
500+
$4.782888
1000+
$4.734576
1500+
$4.686264
2000+
$4.637952
2500+
$4.58964
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 746-014-525-201 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 7
- Number of Positions: 14
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole
- Termination: Press-Fit
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: -
- Operating Temperature: -40°C ~ 105°C
