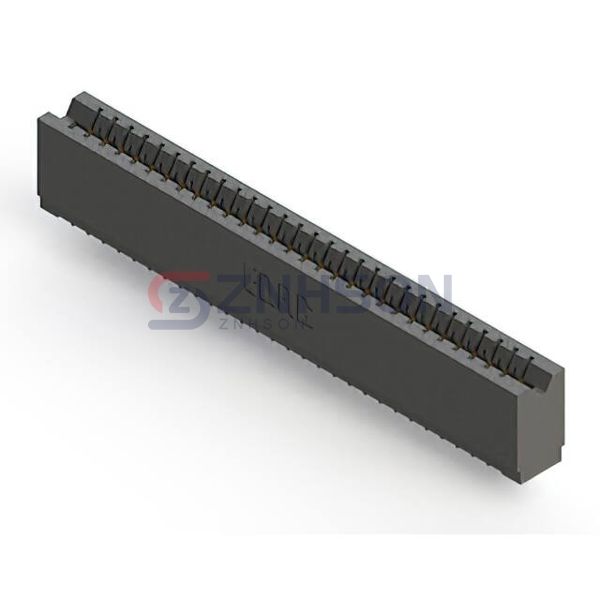

746-029-525-506
EDAC Inc.
EDAC Inc.
746 SERIES ULTRA-MATE CARD EDGE
$9.03
Available to order
Reference Price (USD)
1+
$9.02960
500+
$8.939304
1000+
$8.849008
1500+
$8.758712
2000+
$8.668416
2500+
$8.57812
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For seamless PCB integration, choose the 746-029-525-506 Card Edge Connectors - Edgeboard Connectors from EDAC Inc.. These connectors boast a user-friendly design with polarized housings to prevent mis-mating, making them ideal for high-volume production environments. Their use in consumer electronics, automotive infotainment, and IoT devices highlights their adaptability and superior quality.
Specifications
- Product Status: Active
- Card Type: Non Specified - Single Edge
- Gender: Female
- Number of Positions/Bay/Row: 29
- Number of Positions: 29
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 1
- Pitch: 0.125" (3.18mm)
- Read Out: Single
- Features: -
- Mounting Type: Through Hole
- Termination: Press-Fit
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: -
- Operating Temperature: -40°C ~ 105°C
